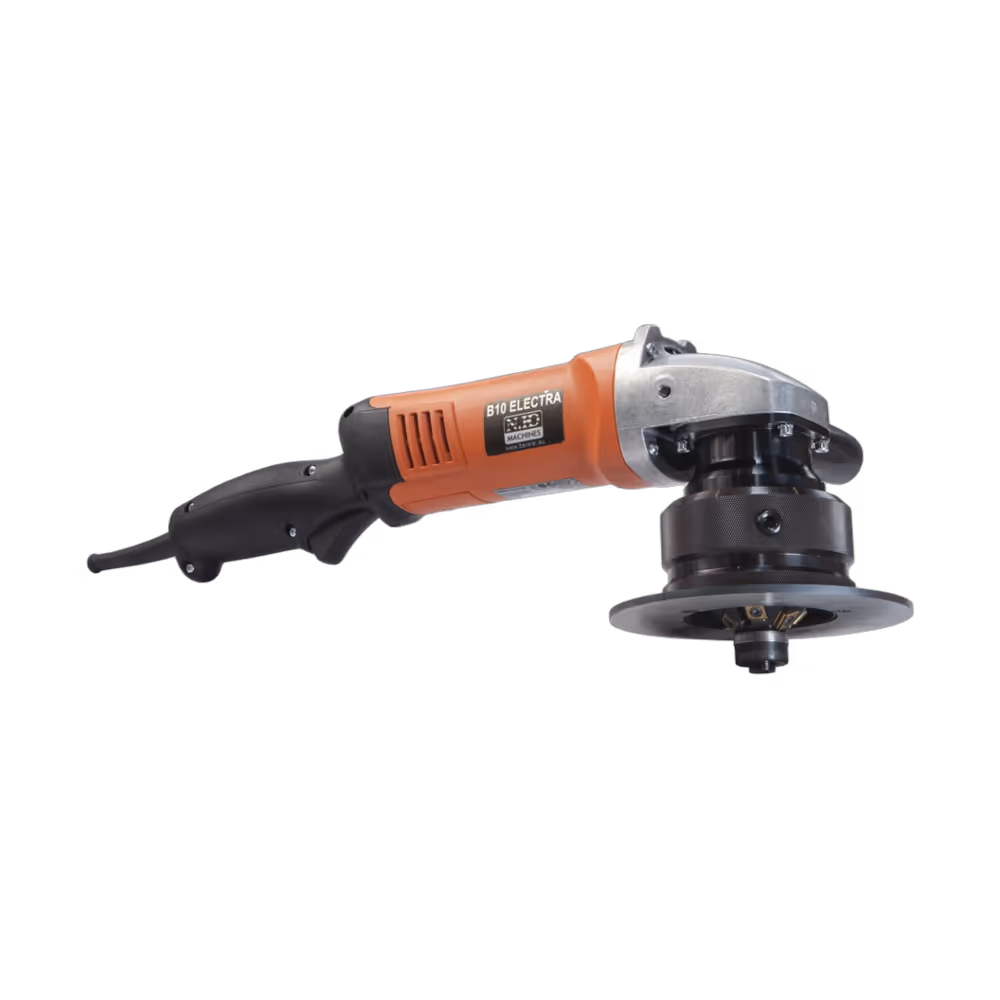

B10 ELECTRA

Handgeführte Anfasmaschine B10 ELECTRA, form-Ansan (max. fasenbreite bis 10mm)

With High Performance Motor And Gearbox Fein Power Tools

  • Anzahl der Wendeplatten 6 Stück (zweischneidig)

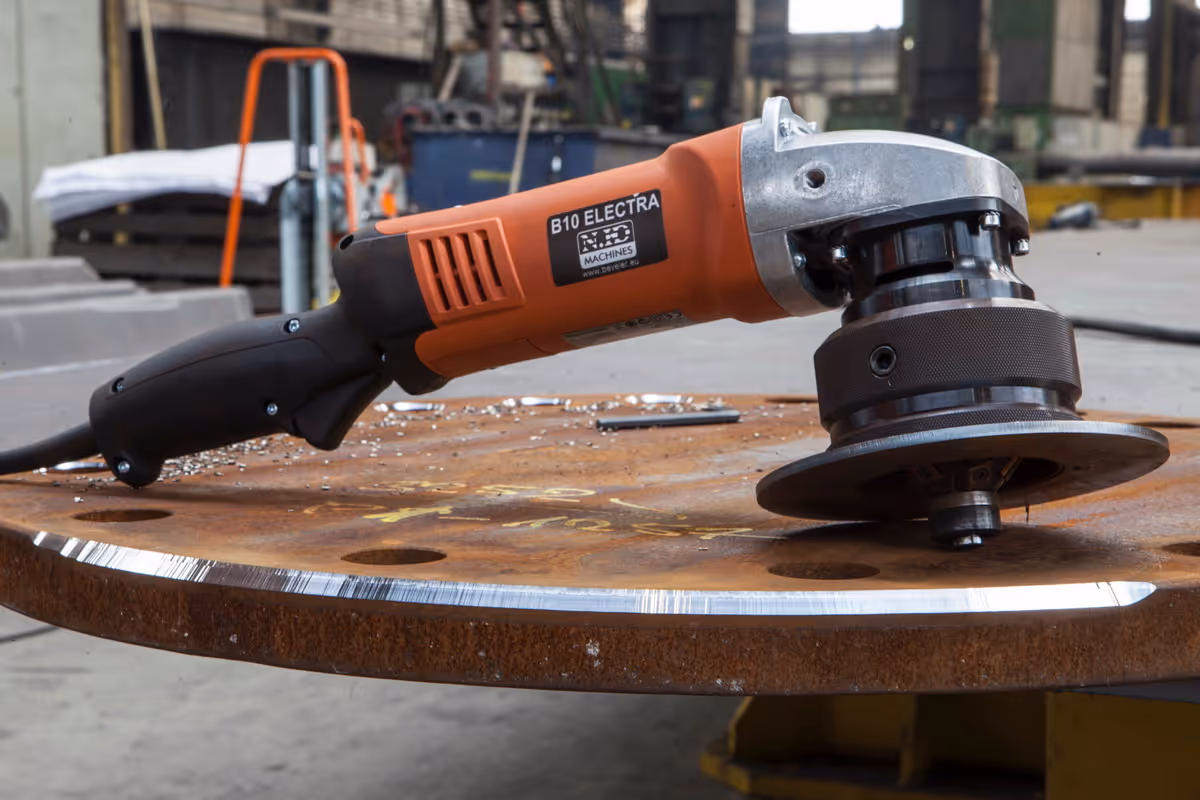

  • Entgraten und Anfasen von Blechkanten vor dem Schweißen – Stahl, Aluminium und weitere Werkstoffe
  • Fräsen von Kurven
  • Fräsen von Bohrungen
  • Werkzeuglose Einstellung der Fasenhöhe
  • Hohe Leistung
  • Ergonomiegerechte Arbeitsweise
  • drehbar ergonomischer Griff
Technische Daten

  • Motor: 230V/50 Hz/1phasig, 1700W
  • Drehzahl: 2700-8500 RPM
  • Fasenbreite: 0 bis 10 mm < 400 N/mm2;
  • 0 bis 5 mm > 400 N/mm2
  • Gewicht: 6 kg
  • Fasenwinkel: nach Fräskopf 30°,37,5°, 45°, 50° oder 60°
    About FEIN Power TOOLS
Im Preis ist inbegriffen:

  • Anfasmaschine ohne Fräskopf.
  • Manuelle Bedienungswerkzeuge
  • Bedienungsanleitung
  • Verpackung in Papierbox
Machine name:
1Phase-230V1Phase-120V
Bevelling and deburring system
B10 ELECTRA (without the milling head)
2530025301
SET Bevelling system B10 ELECTRA + dock station B-Dock (without the milling head)2530225303
SET Bevelling system B10 ELECTRA + Xpipe Beveler (without the milling head)2530425306
SET Bevelling system B10 ELECTRA + dock station B-Dock + Xpipe Beveler (without the milling head)2530525307

Accessories – PREMIUM milling heads:Art.Nr.
30° milling head PREMIUM
- the cutting inserts and the lead roller Ø 30 mm / 1.19“are included
27223X
37,5° milling head PREMIUM
- the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included
27227X
45° milling head PREMIUM
- the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included
27222X
50° milling head PREMIUM
- the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included
27224X
60° milling head PREMIUM
- the cutting inserts and the lead roller Ø 19 mm / 0.75“ are included
27240X
The additional special roller 30° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 33,5 mm / 1.3228004
The additional special roller 37,5° for shorter cutting inserts 8 mm / 0.3“28013
The additional special roller 45° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 31 mm / 1.2328005
The additional special roller 50° for shorter cutting inserts 8 mm / 0.3“28014
The additional special roller 60° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 25,5 mm / 1.0128006
The spare two sided cutting inserts 15 mm / 0.6“
- two-sided, coated
- pack of 10 pcs
- only for premium milling heads
28015
The shorter four sided cutting inserts 8 mm / 0.3“
- four-sided, coated
- pack of 10 pcs
- only for premium milling heads with additional special roller
28008
The fastening screws for cutting inserts (works with both cutting inserts versions)
- only for premium milling heads
28007

Accessories – Edge cleaner – grinding adapter:Art.Nr.
Edge Cleaner – grinding adapter
- including 10 pcs grinding rings grain 40, 1 pc guiding roller
25310
Grinding rings grain 40 for Edge Cleaner
- pack of 50 pcs
25312
Spare polyurethane guiding roller for Edge Cleaner25311

Accessories – The Rounding milling heads:Art.Nr.
Complete radius milling head R2,5 mm / 0.08“
- including of the guiding roll and fastening screw, the cutting inserts are included
- the lead roller diameter Ø 30 mm / 1.19“
27234
Complete radius milling head R3,5 mm / 0.12“ and R4 mm / 0.16“
- including of the guiding roll and fastening screw, the cutting inserts R3,5 mm / 0,12“ are included
- the lead roller diameter Ø 39,5 mm / 1.55“
27233
Cutting inserts for rounding edges R2,5 mm / 0.08“
- four-sided
- pack of 10 pcs
26109
Coated cutting inserts for rounding edges R3,5 mm / 0.12“
- four-sided
- pack of 10 pcs
26110
Coated cutting inserts for rounding edges R4 mm / 0.16“
- four-sided
- pack of 10 pcs
26111
The fastening screws for cutting inserts
- only for rounding milling heads
27242

Accessories – The older ECO milling heads. Available while supplied last.Art.Nr.
30° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 34 mm / 1.34“
27223
37,5° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 28 mm / 1.10“
27227
45° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 28 mm / 1.10“
27222
50° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 28 mm / 1.10“
27224
60° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 27 mm / 1.06“
27240
Cutting head with non-standard angle
- including inserts, screws, bolts and roller
27XXX
Coated cutting inserts
- four-sided
- pack of 10 pcs
- only for ECO milling heads
27231
Screw for the cutting inserts
- only for ECO milling heads
27241


Accessories – others:Art.Nr.
Dock station B-Dock
(beveler B10 Electra / B15 Electra is not included)
25350
Xpipe Beveler – bevelling tool for machining of pipes from Ø 85 mm / 3.36“
(beveler B10 Electra / B15 Electra / B15 AIR is not included)
25500
Special lubricating paste for the milling heads 120g
– prevents seizing up, wear, cold-welding, solidifying of the threads
33005
Mag Brush Maxx Large
– magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in
NMF0107
Mag Brush - collects all magnetic18654
