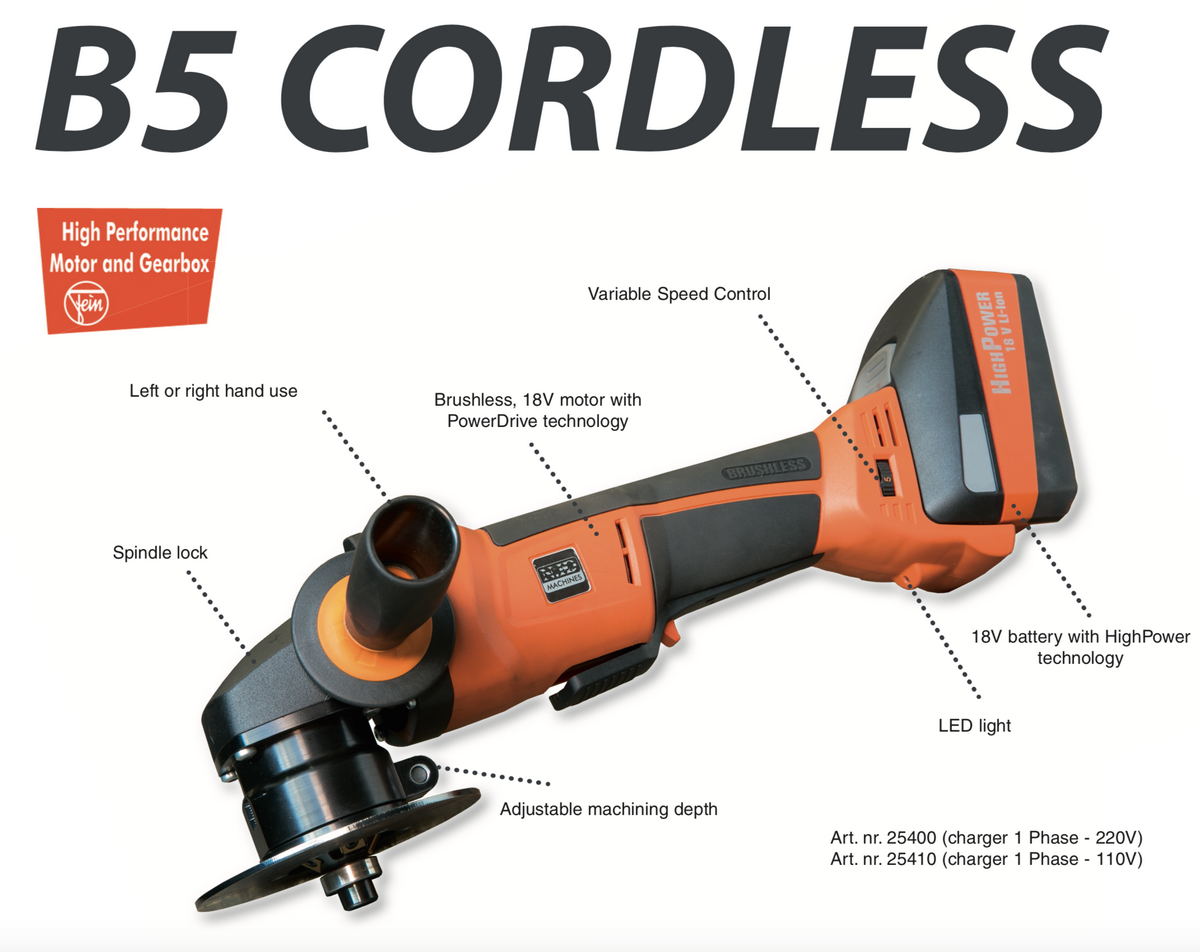

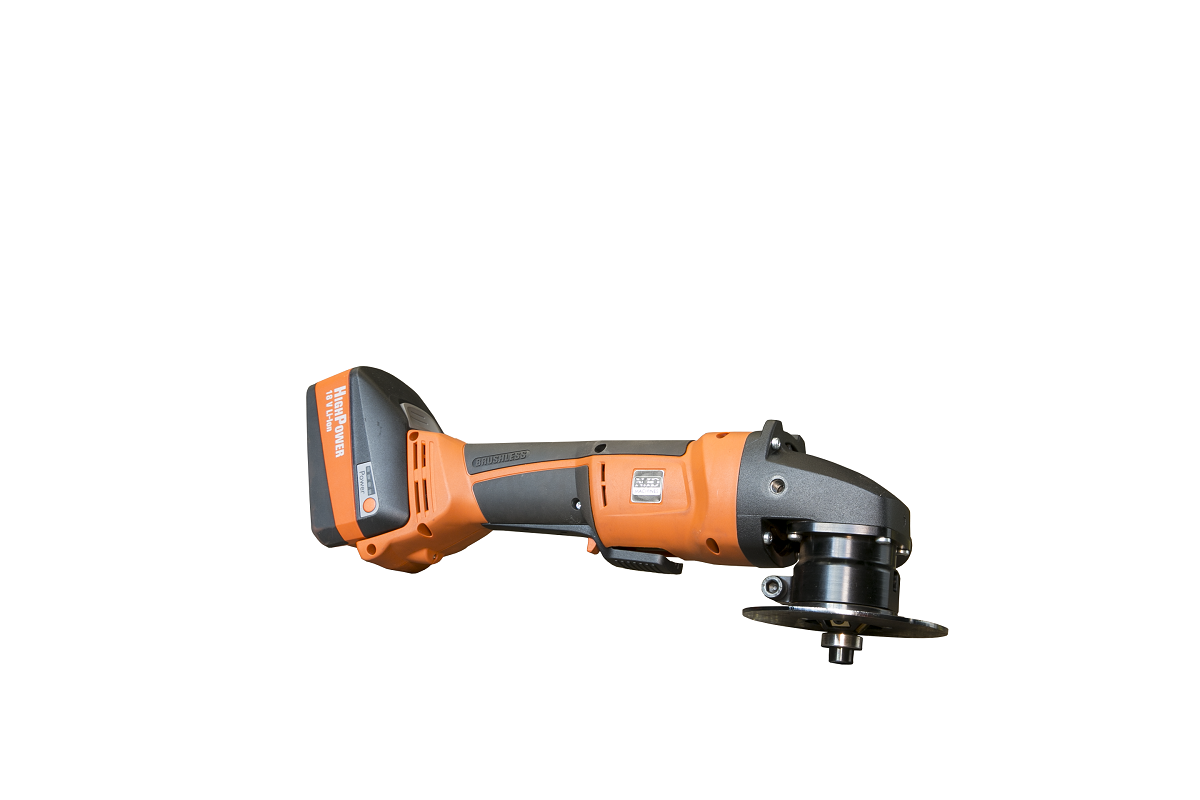

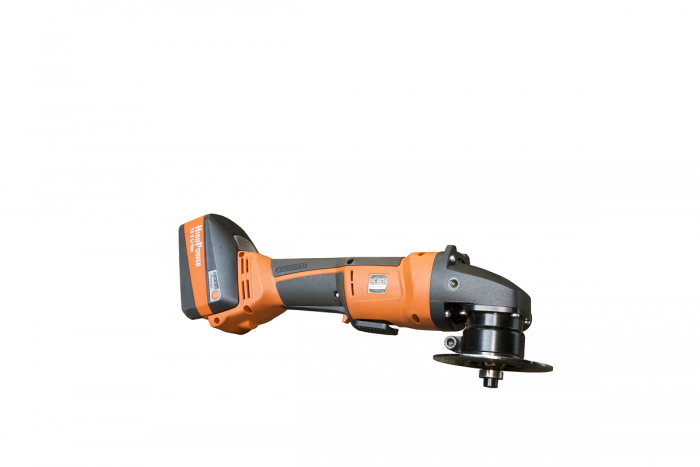

B5 CORDLESS

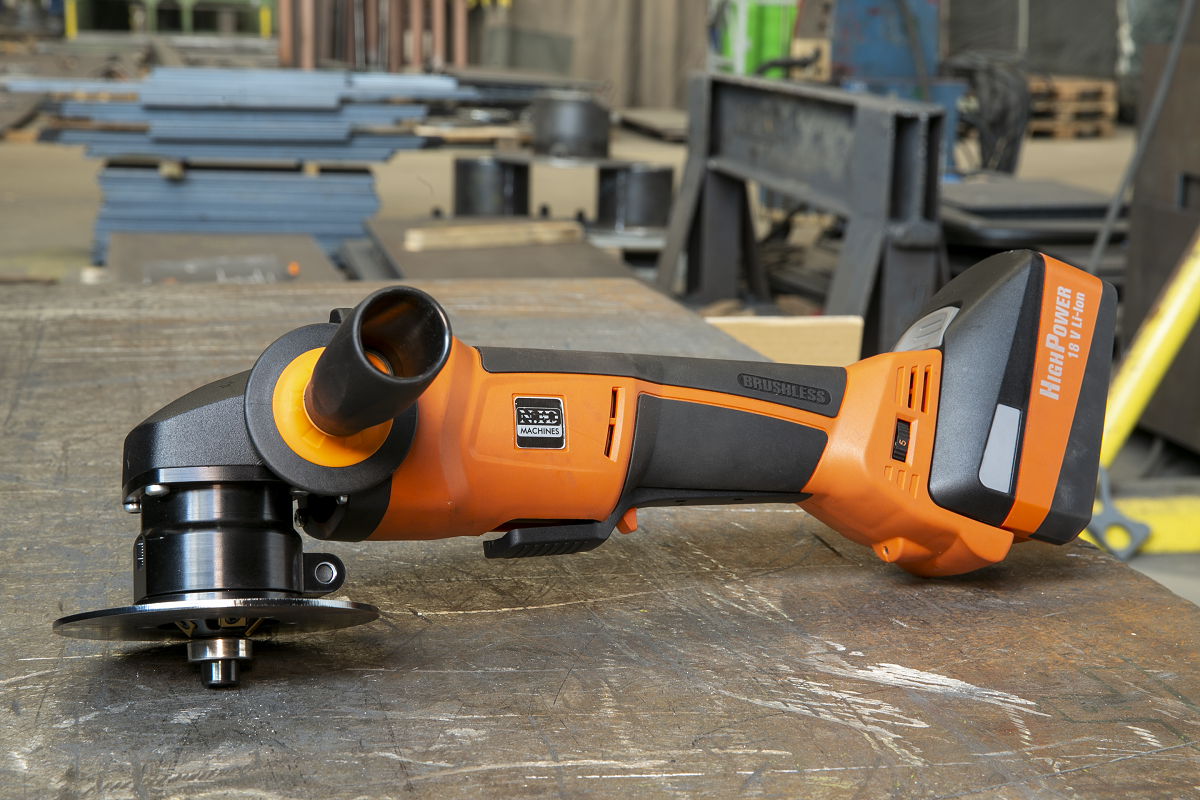

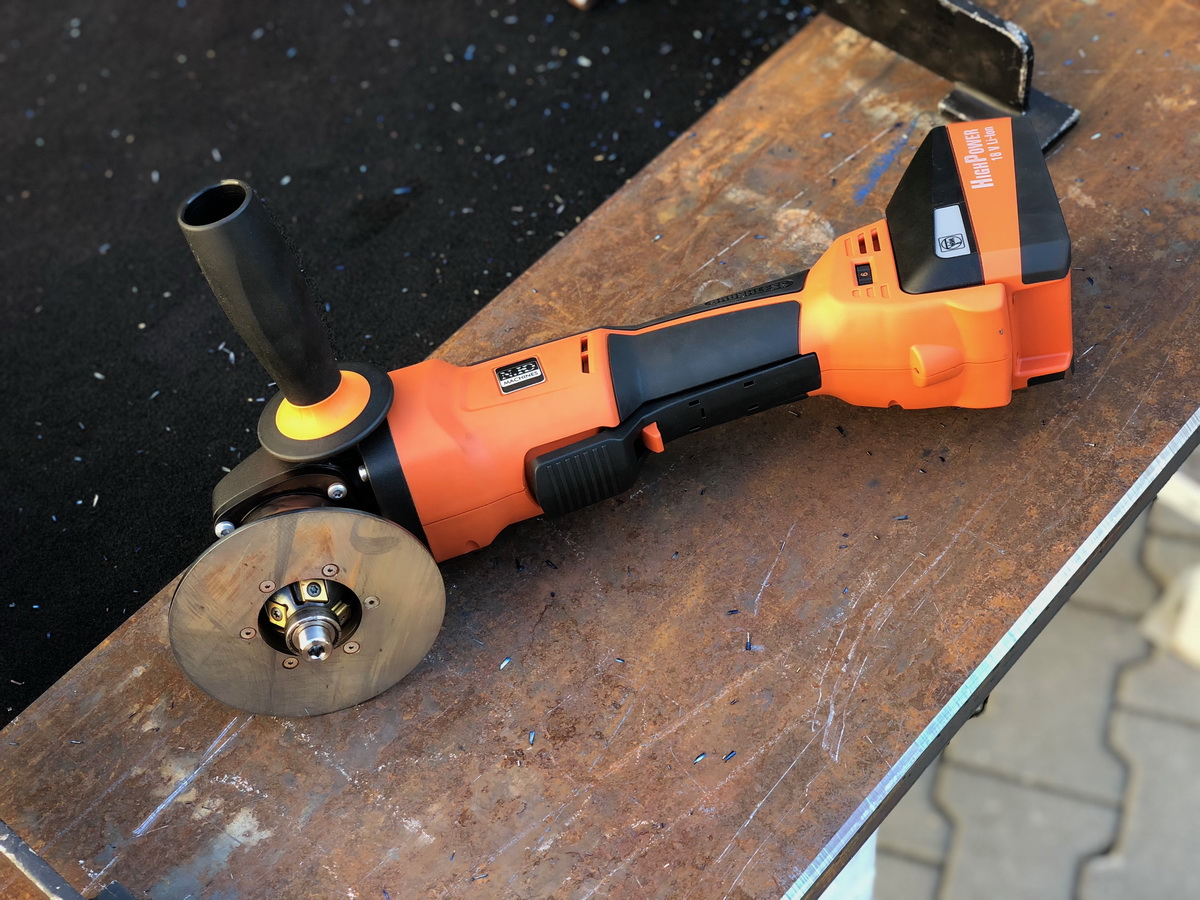

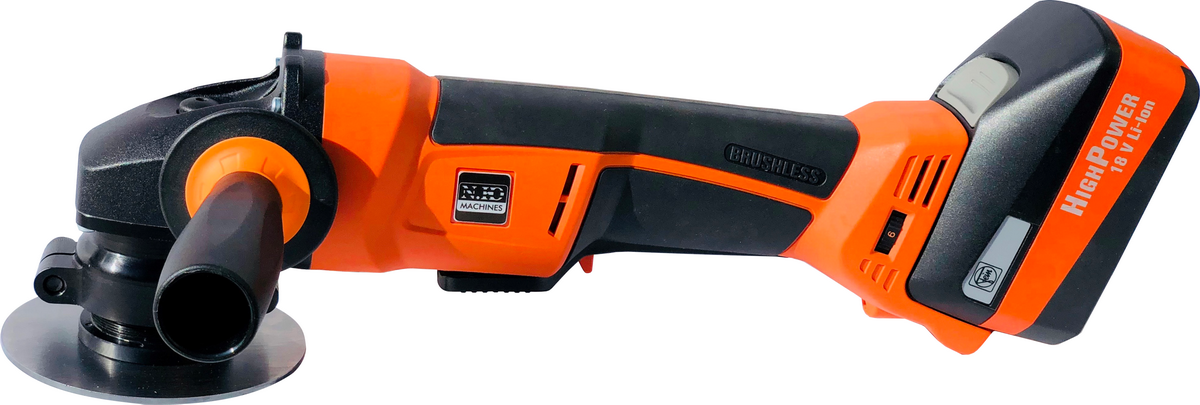

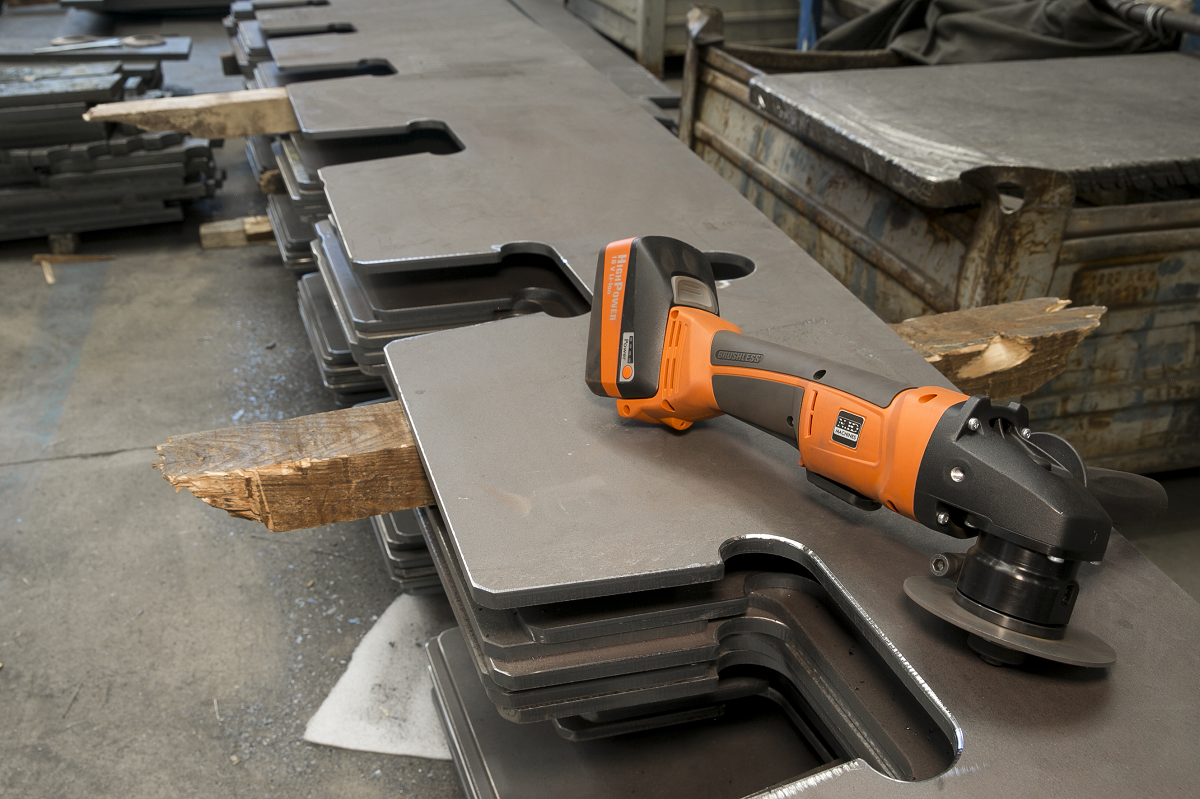

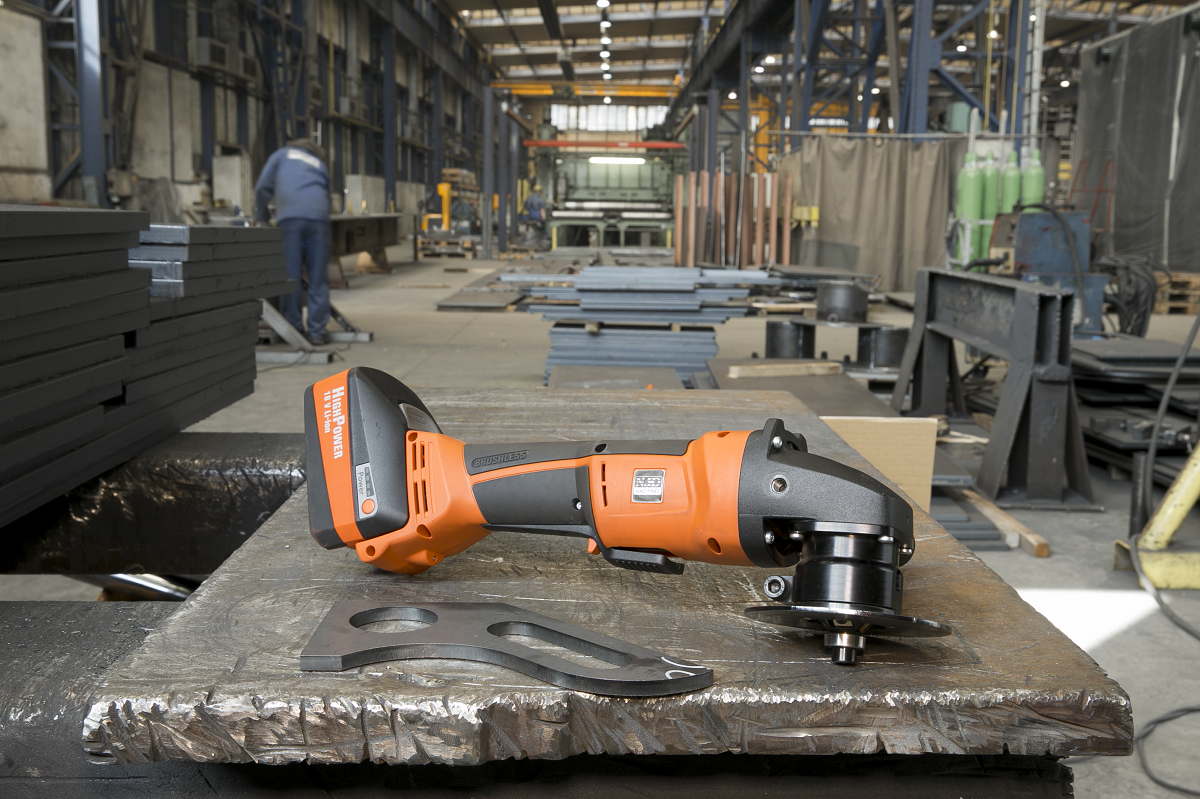

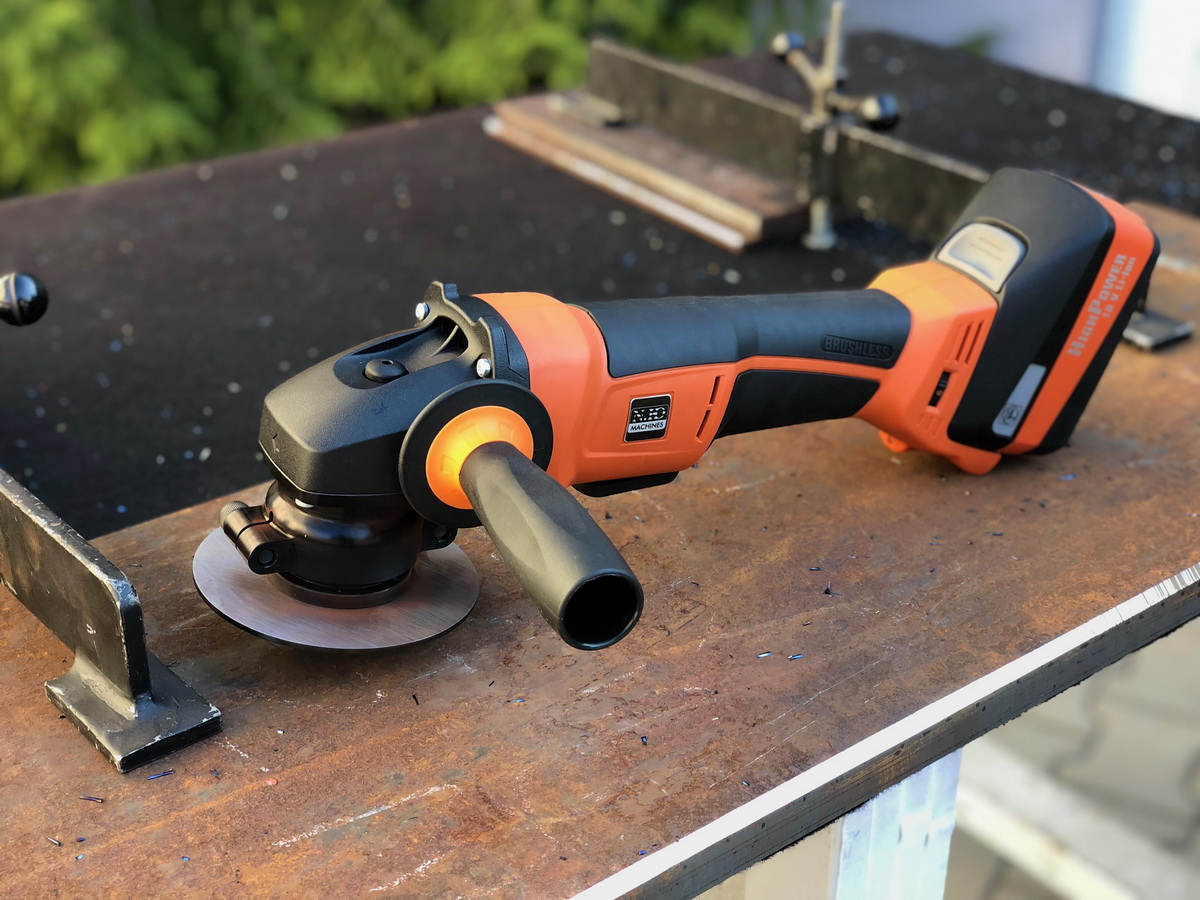

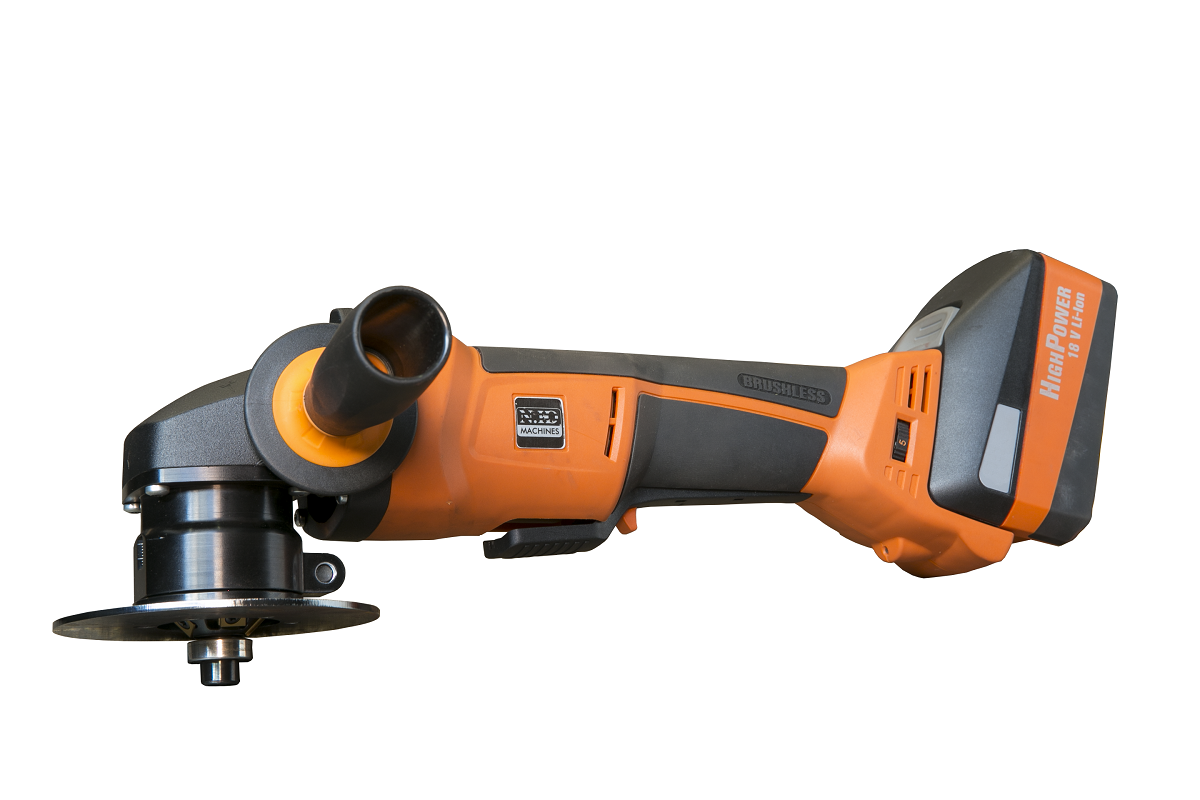

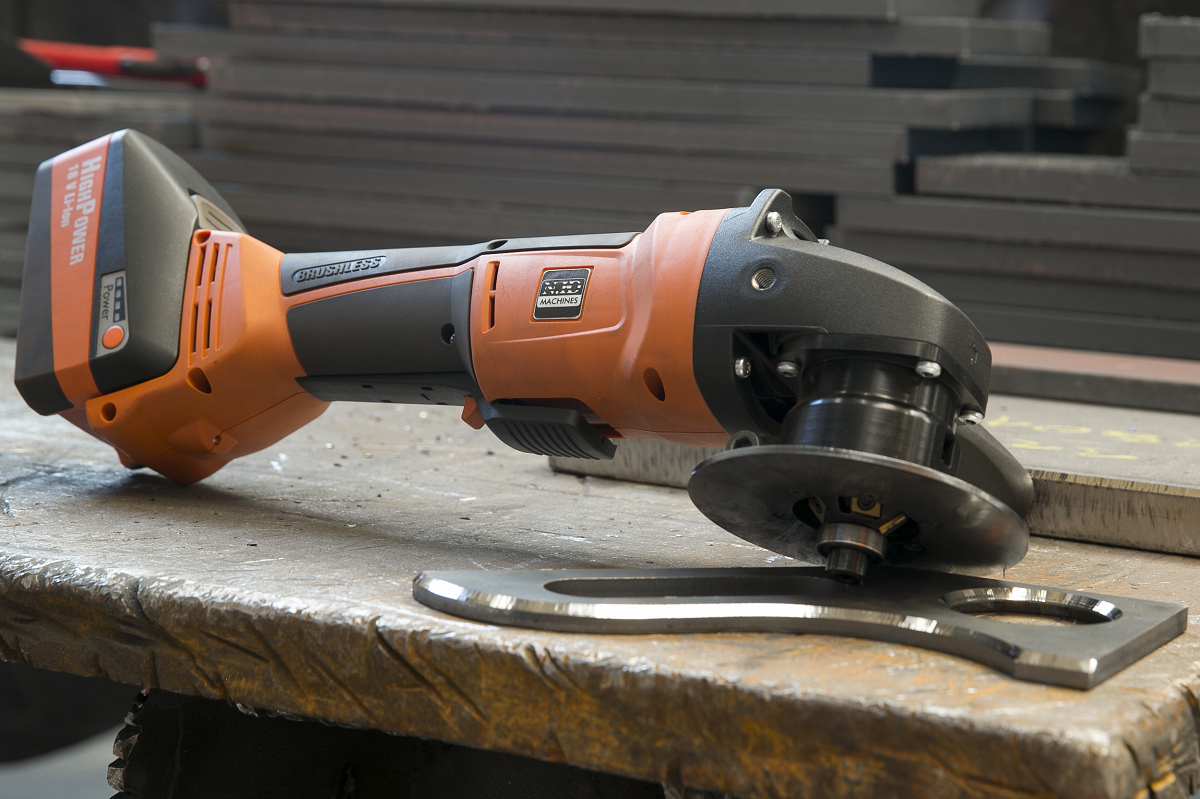

Bevelling machine B5 CORDLESS
- Edge rounding function
- High efficiency motor manufactured by FEIN POWER TOOLS
(Maximum bevel width 5 mm / 0.2 in.)

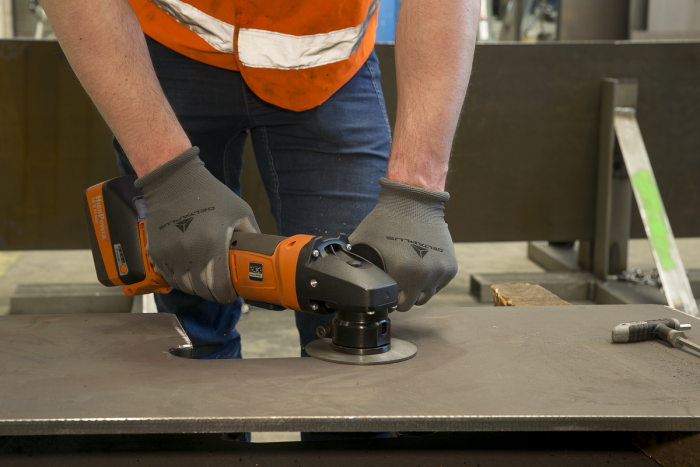

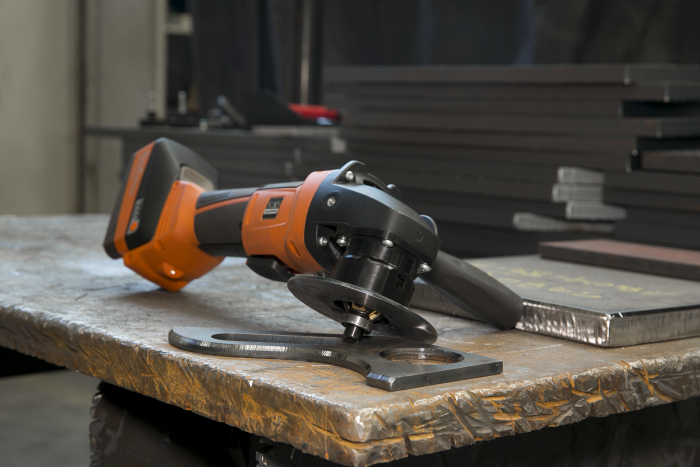

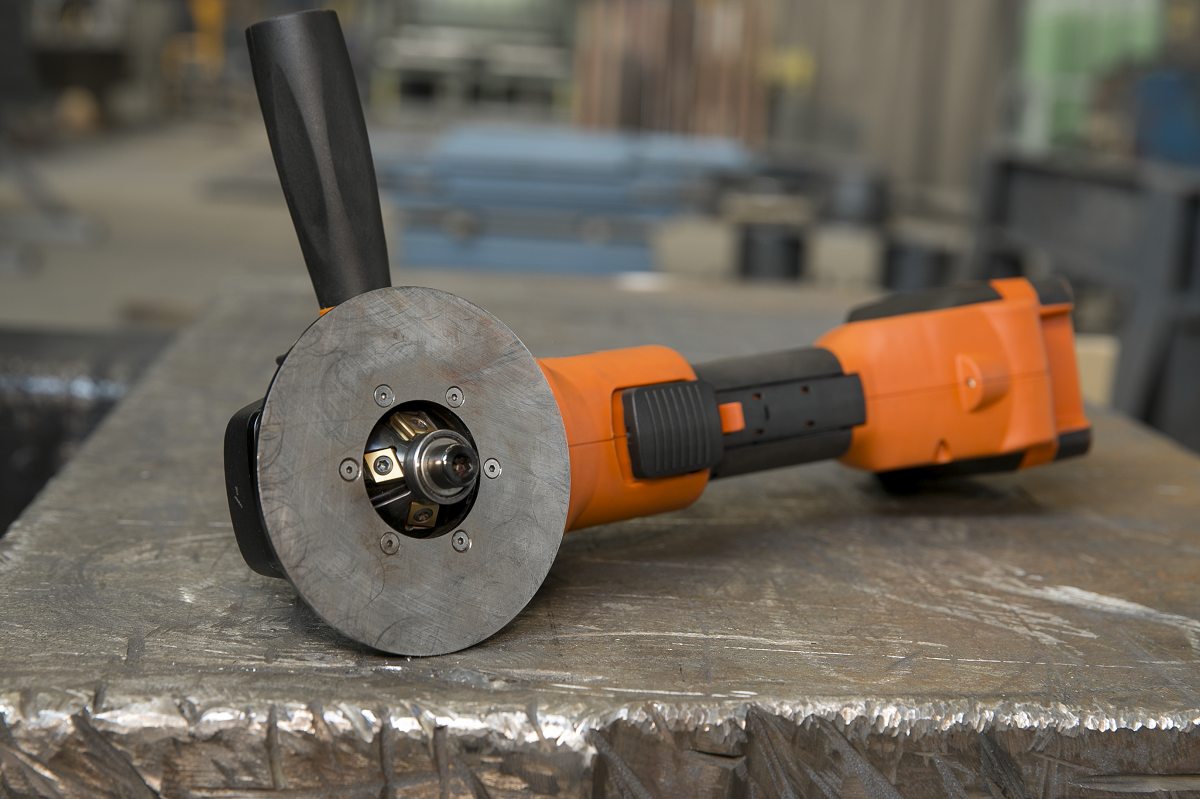

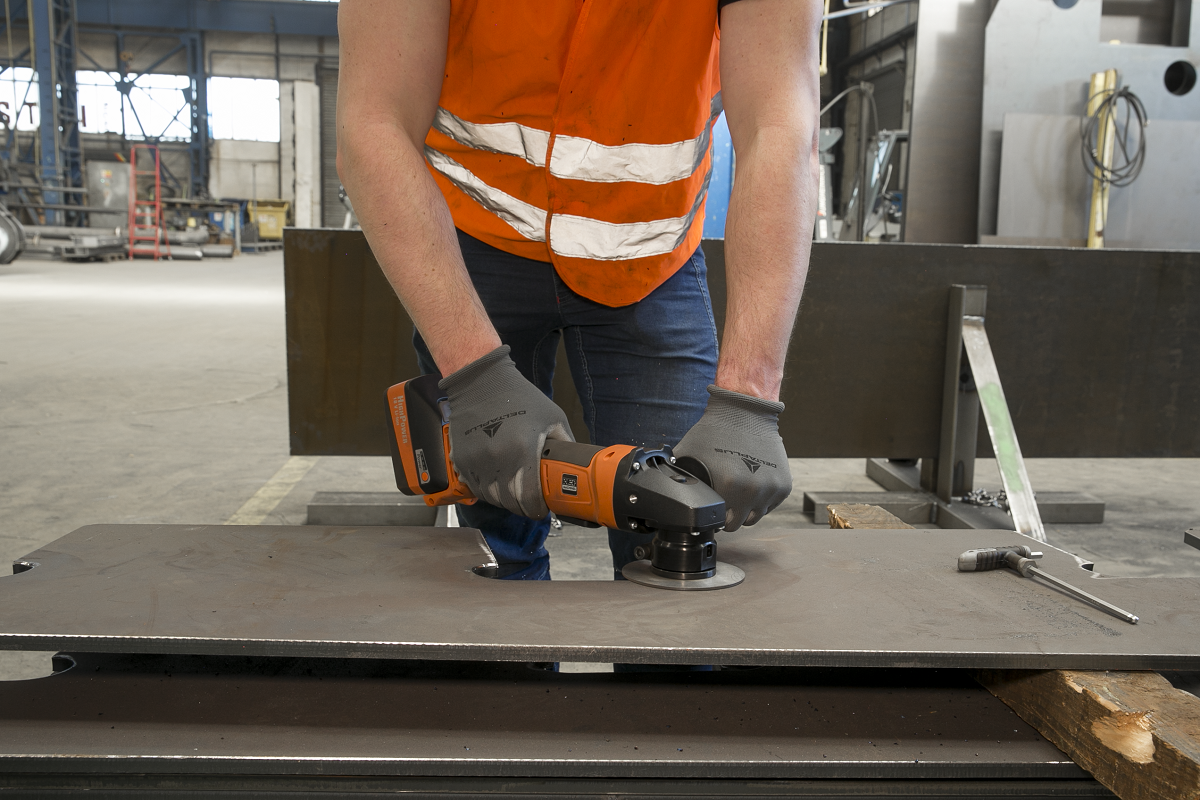

B5 Cordless is designed for bevelling and deburring of edges. Specially designed to produce quality bevels on all types of edges. An all-purpose machine for beveling straight edges, profiles, radiuses and holes. The B5 Cordless with the radius milling head is the ideal solution for deburring of edges and preparing the surface for finishing.

  • Scale for an accurate adjustment of bevel size.
  • Replaceable head for beveling of deburring of workpiece edges.
  • Suitable for beveling and deburring of steel, aluminium and other materials.
  • High performance, durable, brushless, Power Drive motor.
  • The motor is fully enclosed to protect from dust and other particles.
  • Maintenance free motor with innovative cooling fins for optimal cooling and temperature monitoring.
  • High Power lithium-ion batteries by FEIN allow hogh productivity. High-current vatteries provide continuous hogh current output with 75% higher intensity than an ordinary lithium-ion battery.
  • Extensive user protection through soft start, restart protection, electronic overload protection and brake.
  • The narrow handle, the compact design, the low weight and the smart weight distribution makes it easy to handle.
  • LED light iluminates the workspace.
  • Monitoring of the battery charge included on the battery.
  • Safety Cell technology protects the battery and the machine from overloading, overheating and deep discharge.
  • Includes stackable case with room for accessories and tools.
  • Manufactured in Czech Republic, with a high performance German manufactured the motor.
Technical data:
Max. bevel width:5 mm / 0.2 in.
Rounding Radius: R2.5 mm / 0.1 in
Bevel angle: 45°
Motor: 18V brushless, 1,100-watt input
Battery capacity: 5.2 Ah
Speed: 2500-8500 RPM
Feed: manual
Weight: 2,9 kg (2,2 kg without battery) / 6.40 lb (4.85 lb without battery)
Number of cutting inserts: 4 pcs


Battery
Voltage: 18 V
Capacity: 5,2 Ah

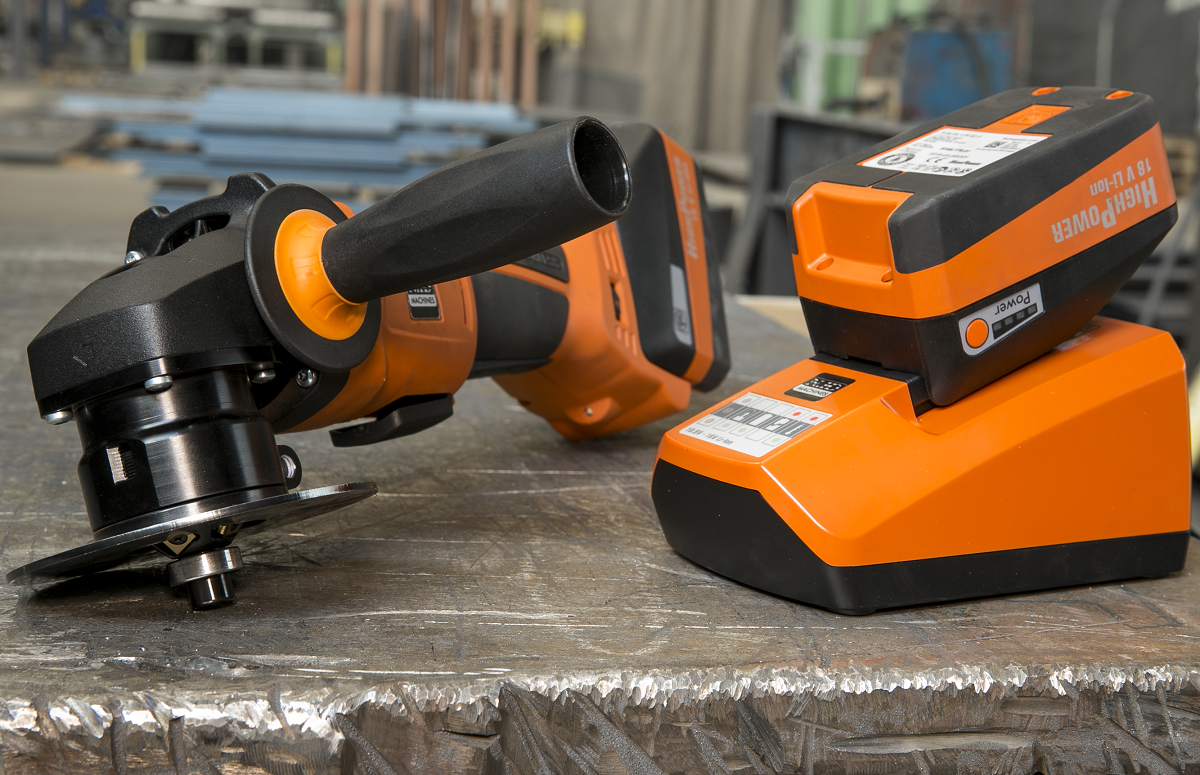

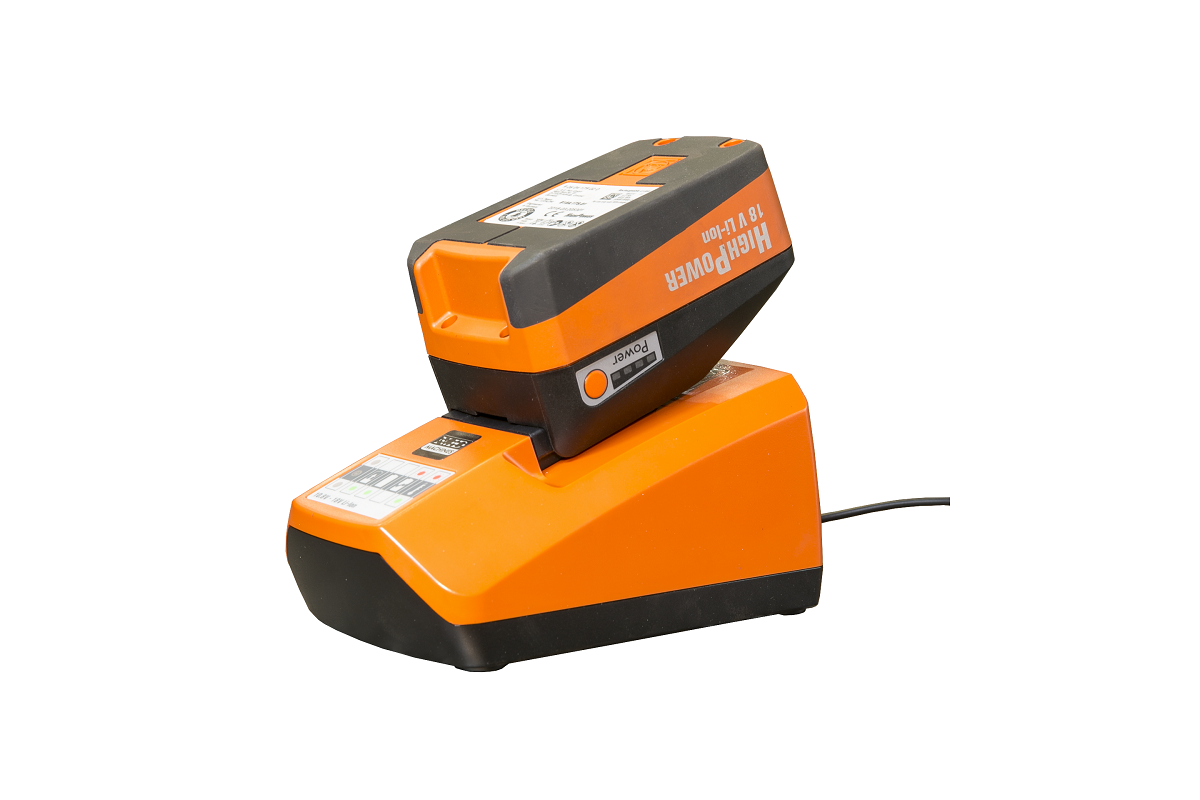

Charger
Voltage: 230V/50Hz or 120V/60Hz
Wattage: 75 W
Rated Battery Voltage: 10,8 – 18 V
Charging time: 20 – 90 min.
(depends on voltage)


Included it the price:
  • Beveling system B5 CORDLESS
  • Tools for operators
  • Two batteries (High-power lithium-ion)
  • Charger

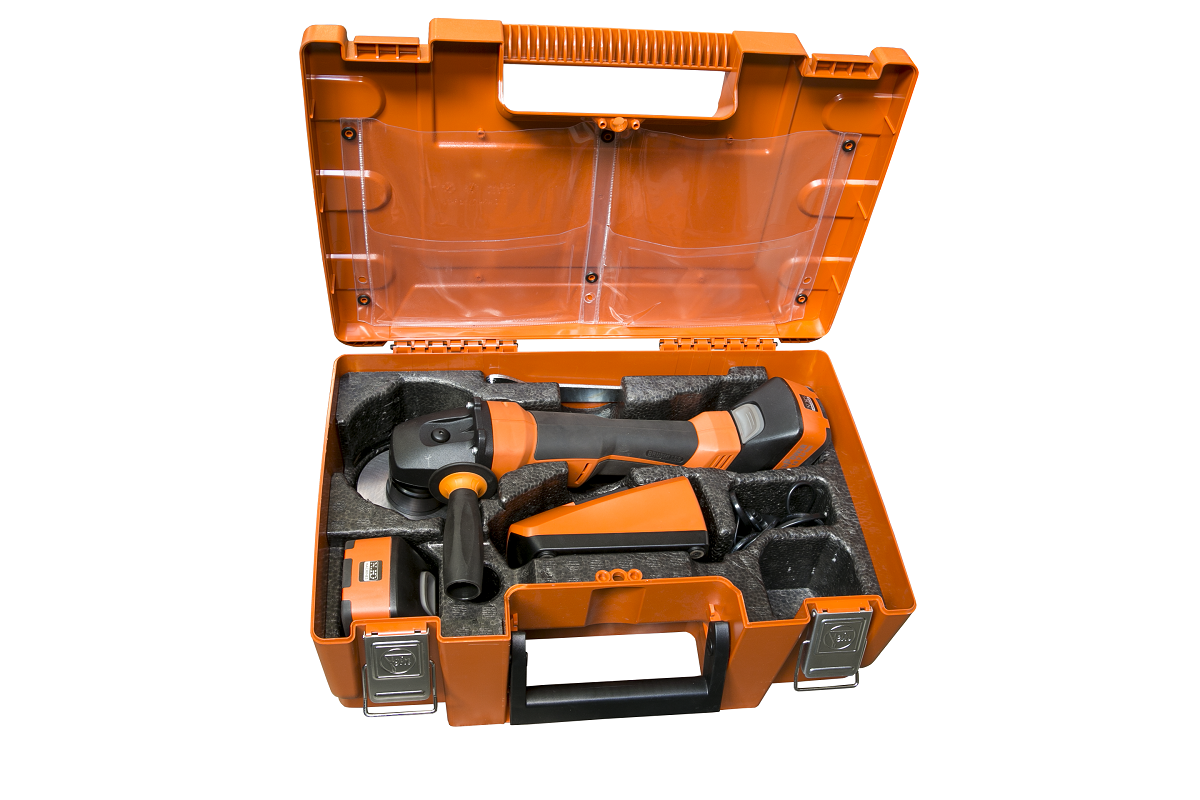

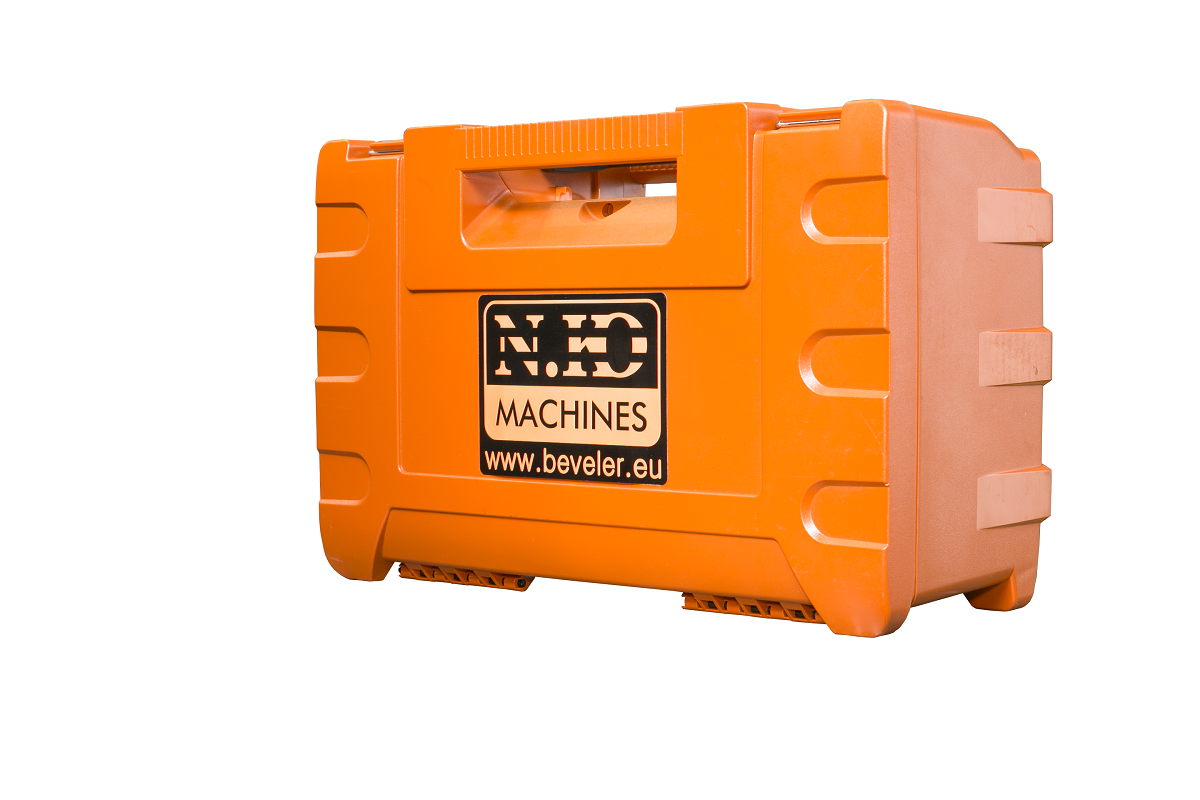

  • Stackable toolbox made from sturdy plastic and space for accessories
  • User manual

Machine name:

Charger 1 Phase - 220VCharger 1 Phase - 110V
Bevelling and deburring system
B5 CORDLESS
2540025410

Accessories:Art.Nr.

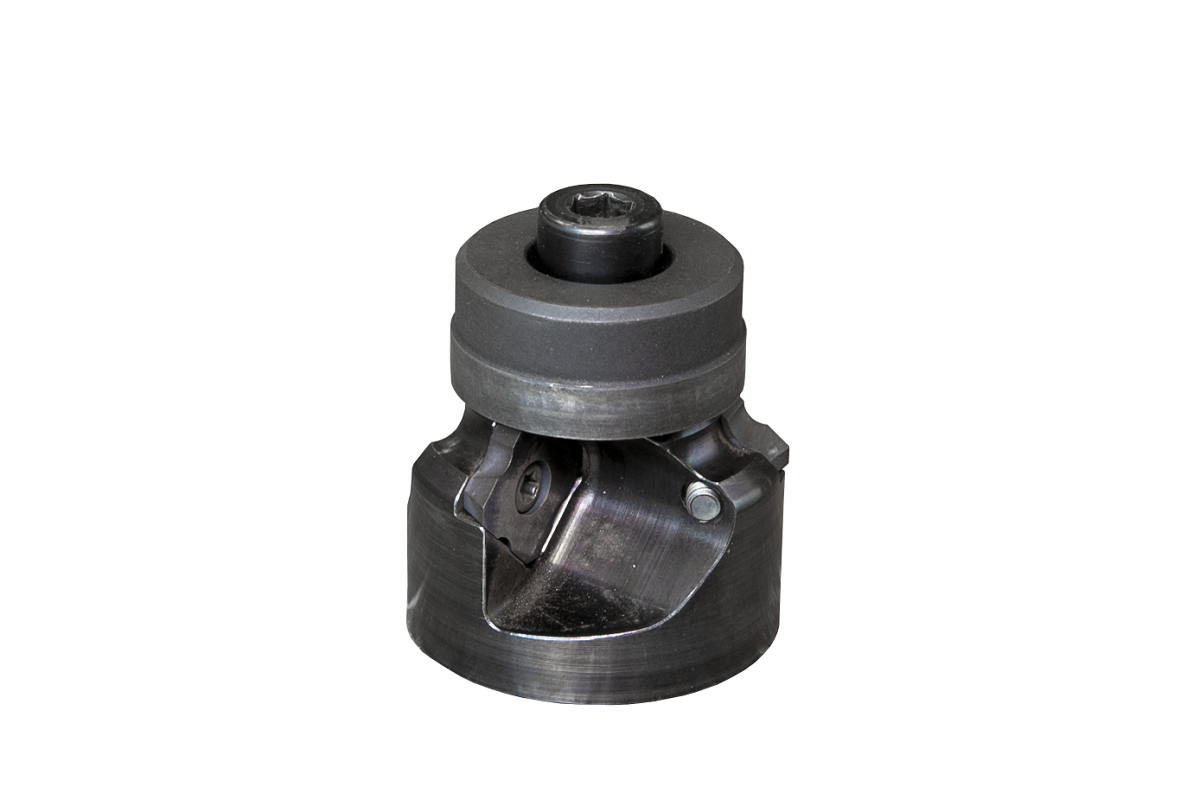

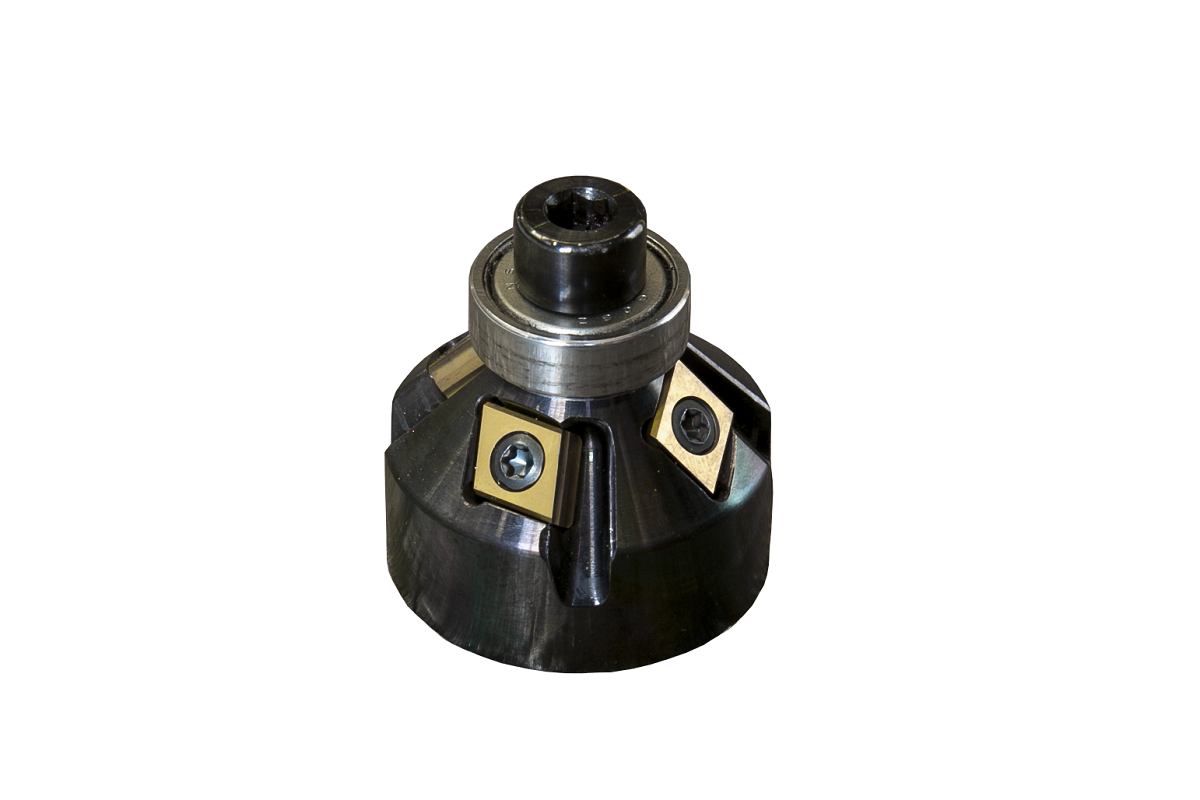

Cutting head 45°
- including inserts, screws and roller bearing
- guide roller diameter Ø 22 mm / 0.9 in
25401

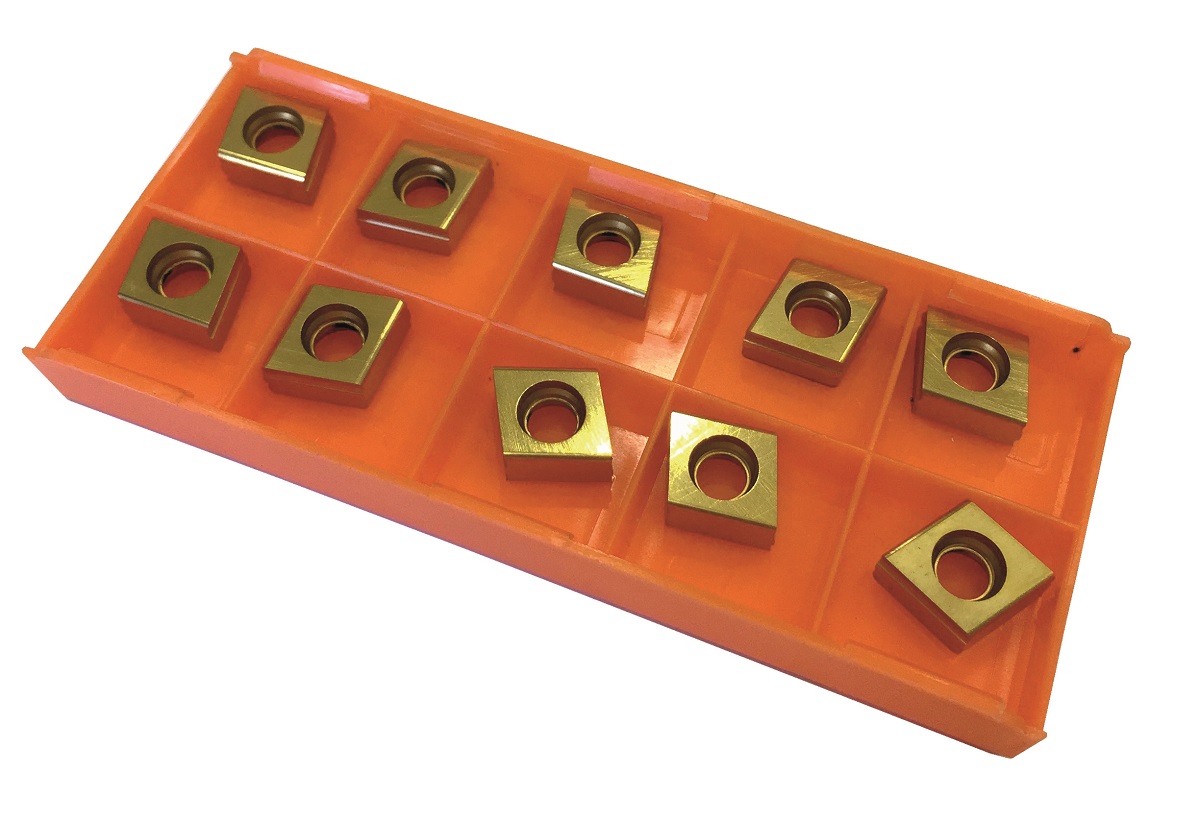

Coated cutting inserts
- four-sided
- set of 10
27231
Screw for cutting inserts27241
Edge rounding cutter R2,5 mm / 0.1 in
- including inserts, screws and, roller bearing
- guide roller diameter Ø 31 mm / 1.22 in
25402

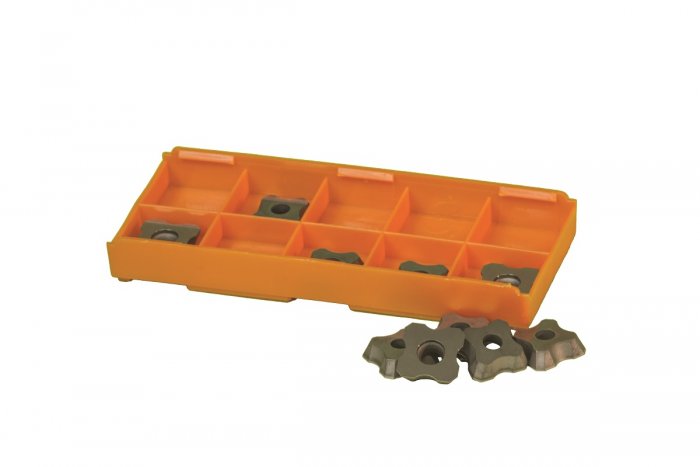

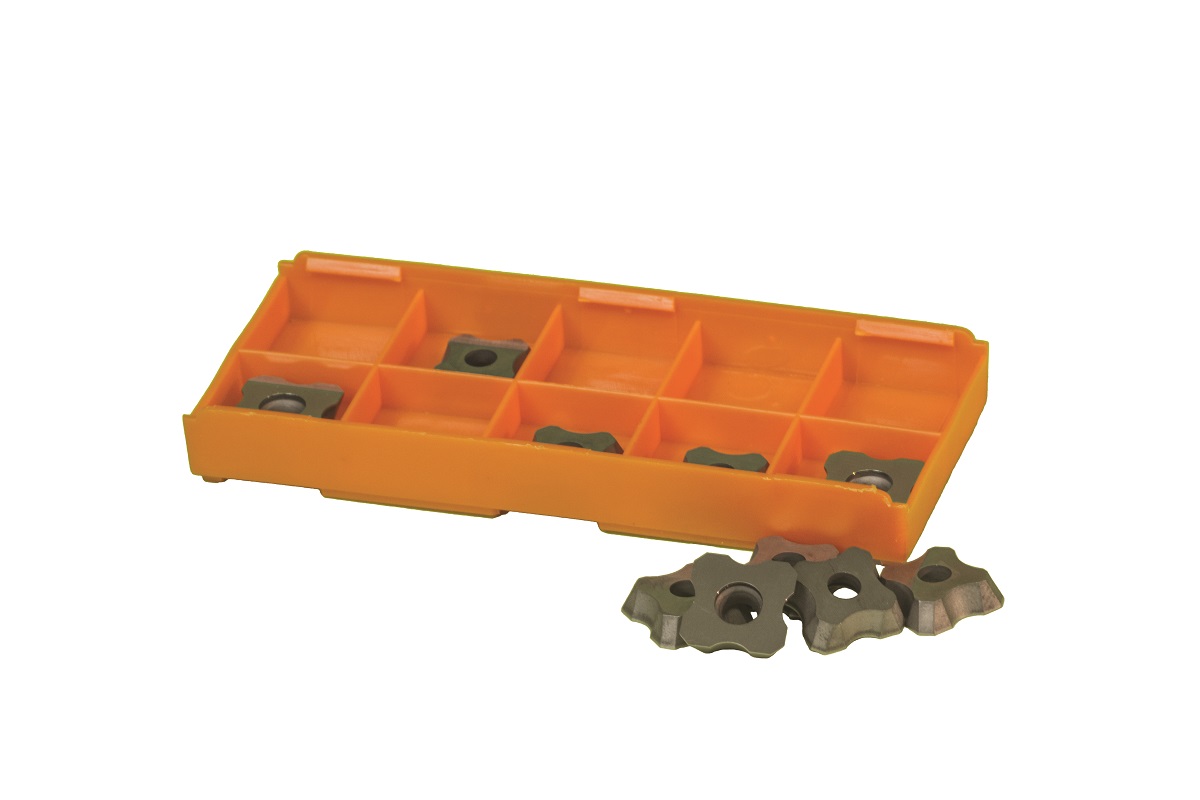

Coated cutting inserts for rounding edges R2,5 mm / 0.1 in
- four-sided
- pack of 10 pcs
26109
Screw for the radius / rounding inserts27242
Spare battery
- 18.0 V; 5,2 Ah
92604179020
Spare Charger 230V92604129010
Spare Charger 110V92604131010

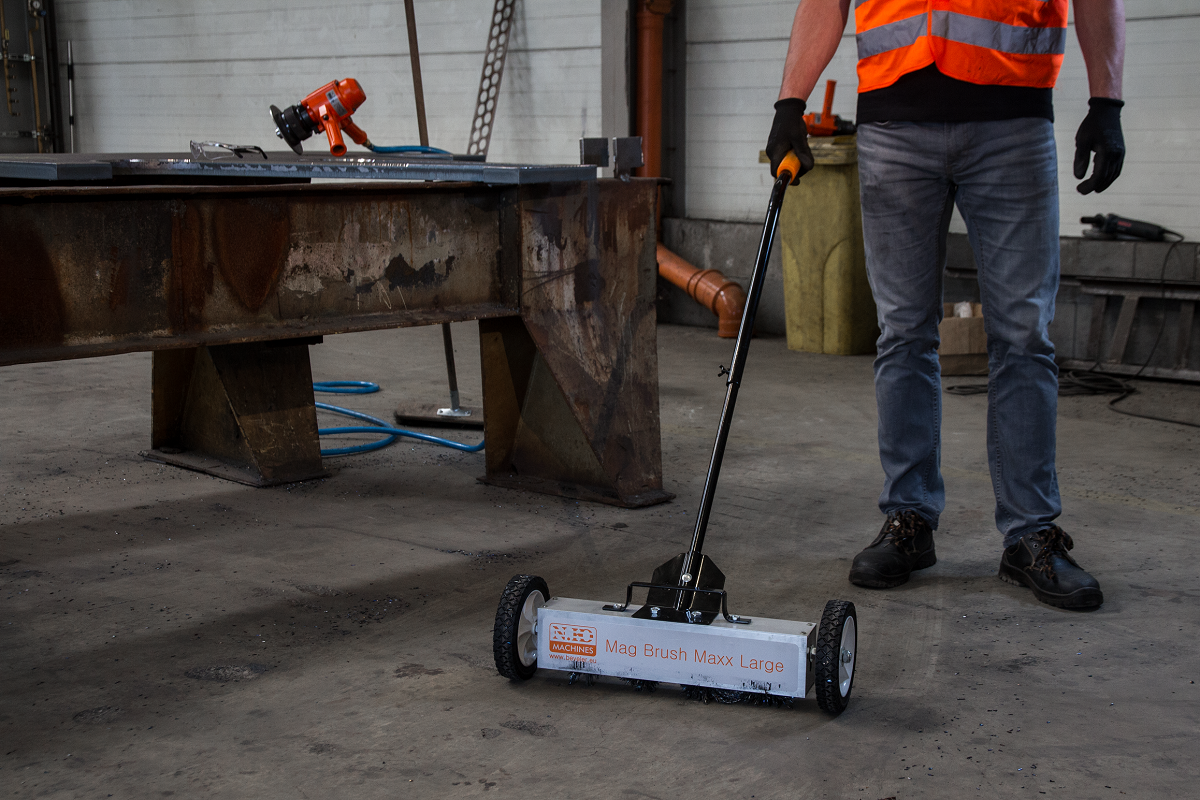

Magnetic sweeper
– magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in
NMF0107

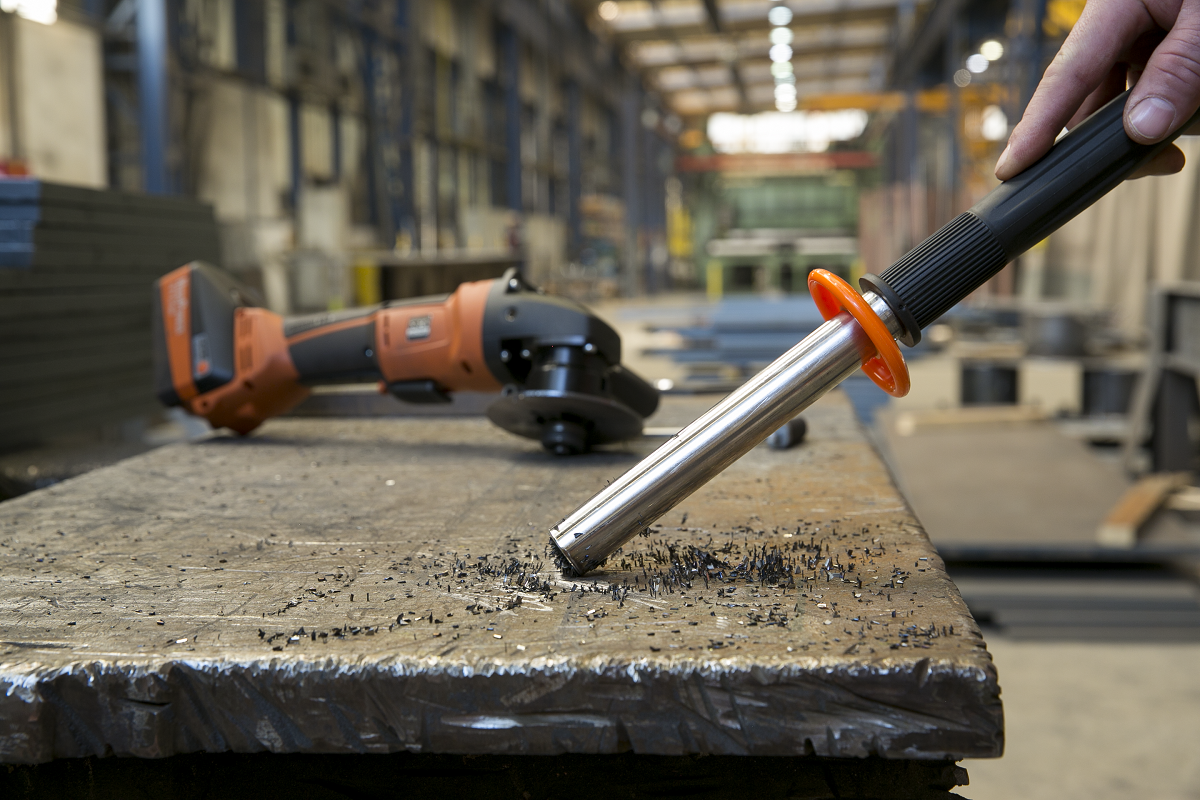

Mag Brush
- collects all magnetic – working lenght 300 mm / 11.8 in
18654
