STINGER 28E

The Stinger 28E bevelling system is developed as a portable self-centering device for the preparation of welding surfaces on pipes and tubes. It is preferred for an easy operation, reliability and generous power portion for performing up to three operations in a single step.
The Stinger 28E allows you to perform several operations (some in a single step) such as aligning the end and edge of the pipe, bevelling, or calibrating the inner diameter of the pipe to be machined.
Of course, it is also possible to actively perform only one of the above operations separately.
  • Bevel operations including J-bevel.
  • Pipe face alignment operation - Facing.
  • Operation of alignment and calibration of the inner diameter of the pipe.
  • Multiple operations in a single step.
  • Possibility of pneumatic drive.
  • Possibility to customise cutting tools according to specific requirements on request.
Technical data:
  • Machine working range ID - OD: 18-28mm/.7“ - 1.10“inch
  • Maximum wall thickness: 15 mm
  • Electric drive power: 1200W
  • Machine weight: 10Kg/ 22Lb

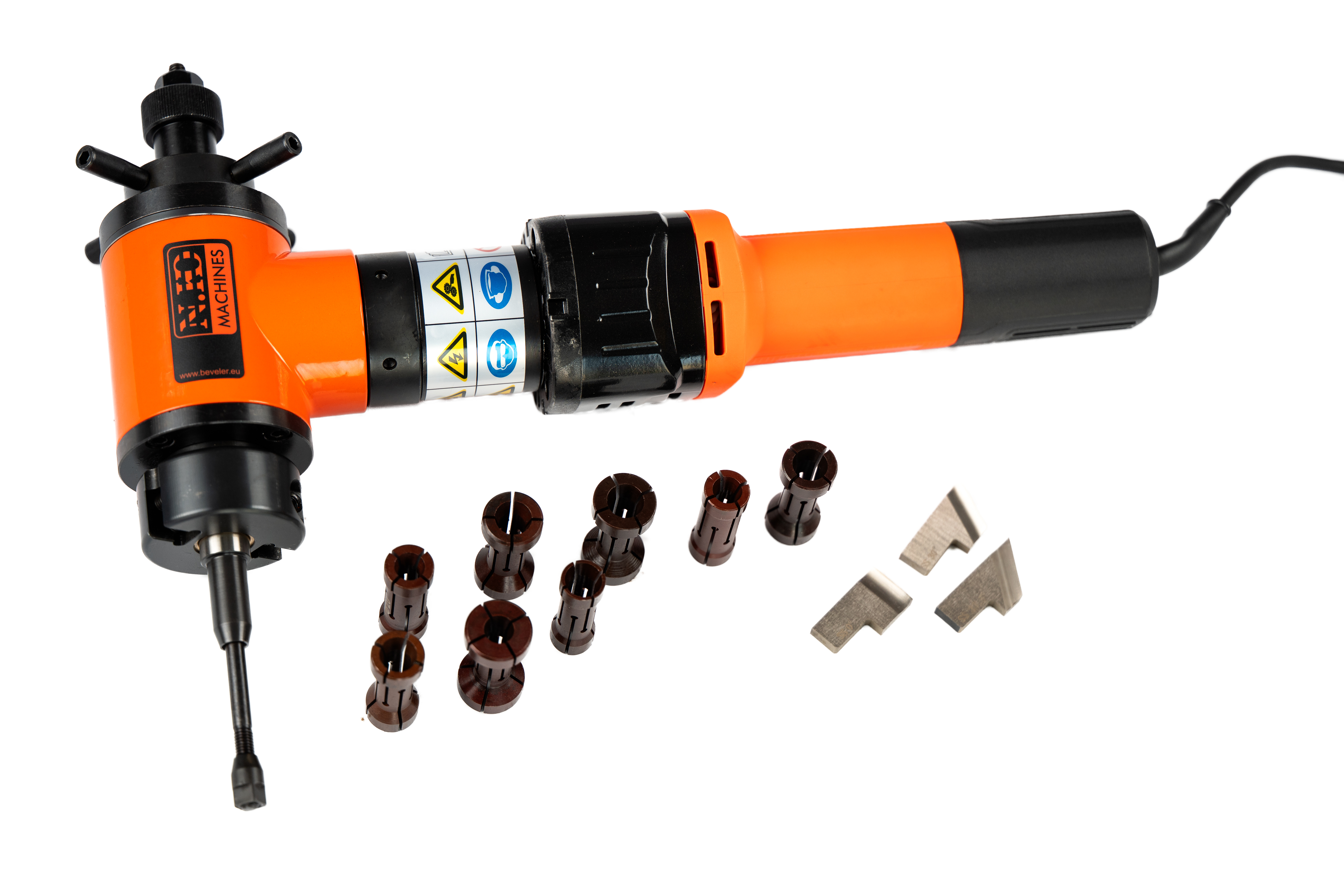

Included in the price:
  • Stinger bevelling system Stinger 28E
  • Tools for an operator
  • Set of tools
  • Set of self-centering jaws
  • Instructions
  • Packed in plastic box and carton
Machine nameArt.Nr.
Stinger 28E30011
