B10 ELECTRA

Name: B10 ELECTRA
Brand: N.KO Machines

HAND BEVELER

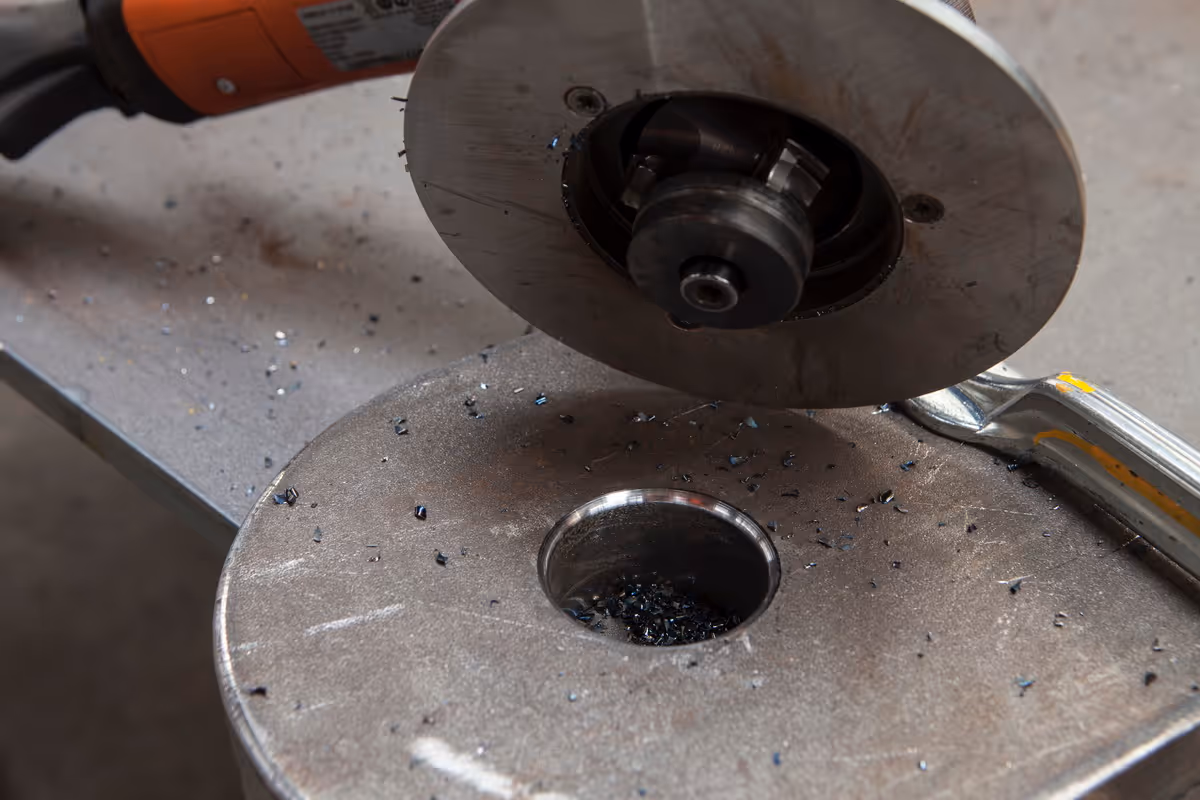

Designed for bevelling workpieces, internal and external radiuses and holes. Edge rounding function. Specially designed for producing bevels and welding preparation. Durable and stable machine design without compromises.

‍

We offer this machine in the following models and voltages:

Bevelling and deburring system B10 ELECTRA (without the milling head)
- Art.Nr. 25300 - 1 Phase, 230V
- Art.Nr. 25301 - 1 Phase, 120V
SET Bevelling system B10 ELECTRA + dock station B-Dock (without the milling head)
- Art.Nr. 25302 - 1 Phase, 230V
- Art.Nr. 25303 - 1 Phase, 120V
SET Bevelling system B10 ELECTRA + inoXpipe Beveler (without the milling head)
- Art.Nr. 25304 - 1 Phase, 230V
- Art.Nr. 25306 - 1 Phase, 120V
SET Bevelling system B10 ELECTRA + dock station B-Dock + inoXpipe Beveler (without the milling head)
- Art.Nr. 25305 - 1 Phase, 230V
- Art.Nr. 25307 - 1 Phase, 120V

Share Product

Inquire Now

Line

B-Line

Art. Nr.

25300

Product Name

B10 ELECTRA

POWER

1700W

Max. Bevel Width

0 to 10 mm / 0 to 0.4 in< 400 MPa

Bevel Angle

replaceable head 0° / 30° / 37,5° / 45° / 50° / 60° - other angles on demand

Rounding Radius

R 2,5 mm / R 3,5 mm / R 4 mm

Speed

2700-8500 RPM

Feeding

Manual

Weight

6 kg / 13,2 lb

PRODUCT MANUALS

B10 ELECTRA Catalogue Sheet EN

B10 ELECTRA User Manual EN

Bevel Types

V-Bevel

Facing

Radius

View Bevel Details

V-Bevel

Facing

Radius

Key benefits

Scale for accurate bevel size adjustment.
For bevelling and deburring steel, aluminium and other materials.
Replaceable head for changing bevel angle.
Handheld powerful equipment.
Electronic Speed Control.
Edge rounding function, preparation before surface treatment.
Manufactured in Czech Republic, with a high-performance German-manufactured motor.
