B15 AIR

Name: B15 AIR
Brand: N.KO Machines

BEVELLING SYSTEM

Pneumatic hand beveler with huge power for straight edges, contours, boreholes and radius. Designed and produced by NKO MACHINES, it brings a new high-ergonomics design and huge power for everyday beveling. Aluminum alloy body engine, Hardox support plate, milling head and inserts designed especially for hand beveler.

‍

We offer this machine in the following models:

BEVELER B15 AIR (max. width of bevel 15 mm)
- Art.Nr. 27220 - Bevelling and deburring system B15 AIR (without the milling head)
- Art.Nr. 27220S - Bevelling and deburring system B15 AIR-S –low RPM version for stainless steel (without the milling head)
- Art.Nr. 27225 - SET Bevelling and deburring system B15 AIR + inoXpipe Beveler (without the milling head)
- Art.Nr. 27225S - SET Bevelling and deburring system B15 AIR-S –low RPM version for stainless steel+ inoXpipe Beveler (without the milling head)

Share Product

Inquire Now

Line

B-Line

Art. Nr.

27220

Product Name

B15 AIR

POWER

2 984W

Max. Bevel Width

0 to 15mm< 400 N/mm2

Bevel Angle

replaceable head 0° / 30° / 37,5° / 45° / 50° / 60° - other angles on request

Rounding Radius

R 2,5 mm / R 3,5 mm / R 4 mm

Speed

6000 rpm

Feeding

manual

Air Consumption

6 bar/750 l/min

Weight

7,5 kg

PRODUCT MANUALS

B15 AIR Catalogue Sheet EN

B15 AIR User Manual EN

Bevel Types

V-Bevel

Facing

Radius

View Bevel Details

V-Bevel

Facing

Radius

Key benefits

Ergonomic two-handed operation.
Huge power for all applications.
Straight edges, contours, boreholes.
Excellent price.
30°, 45°, 50°, 60° and other angles on demand.
Made in Czech Republic by NKO MACHINES.

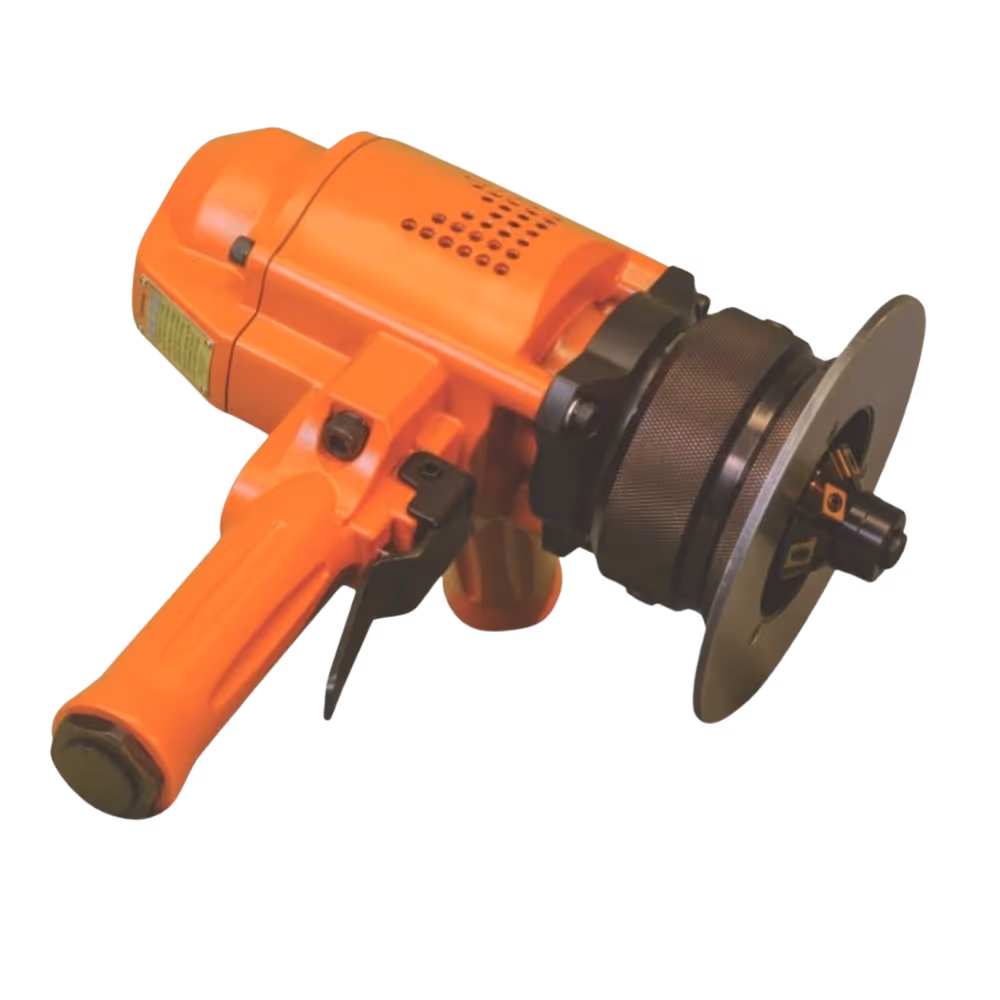

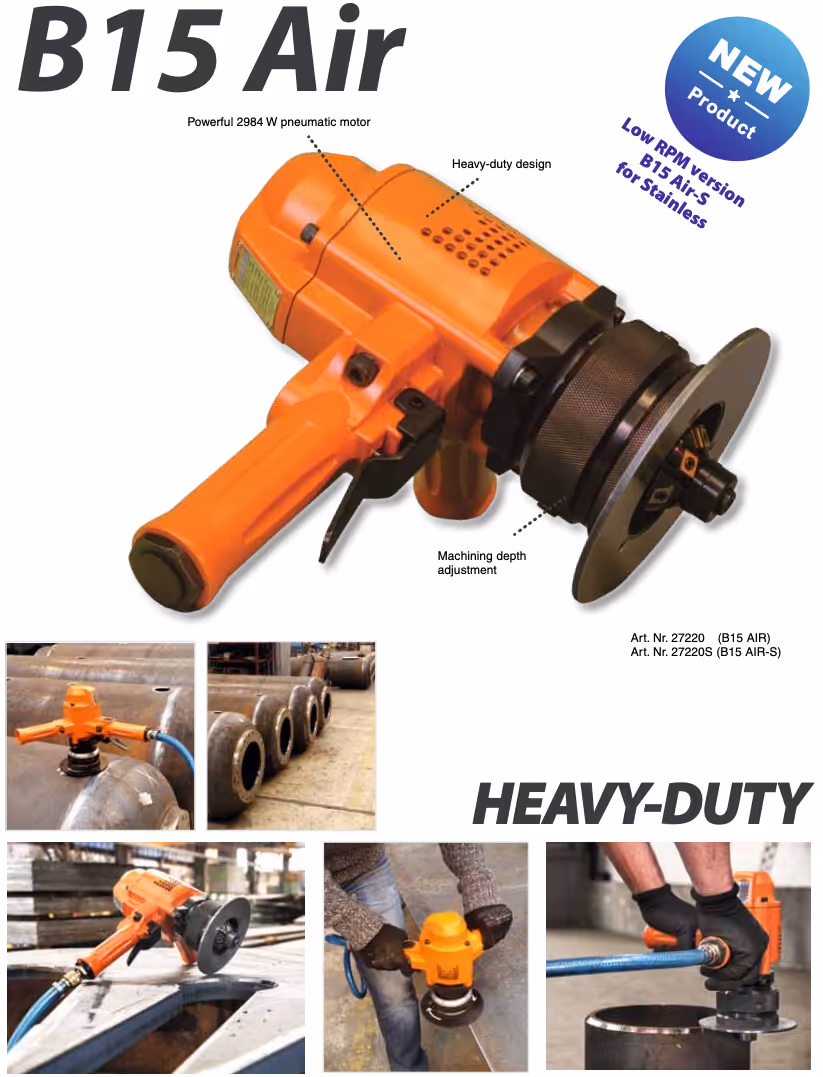

The beveler B15 AIR is a heavy-duty hand held pneumatic beveler which uses 6 indexable carbide inserts. The design allows straight edges, contours and boreholes to be beveled with ease, suitable also for radius.
High performance pneumatic motor offers huge power for all applications.
Works with steel, stainless steel, aluminium, copper, plastic and other materials.
The precision dial scale allows precise adjustment of the chamfer height.
Replaceable tool holder for angles 30°, 37.5°, 45°, 50°, 60° and other angles on demand.
