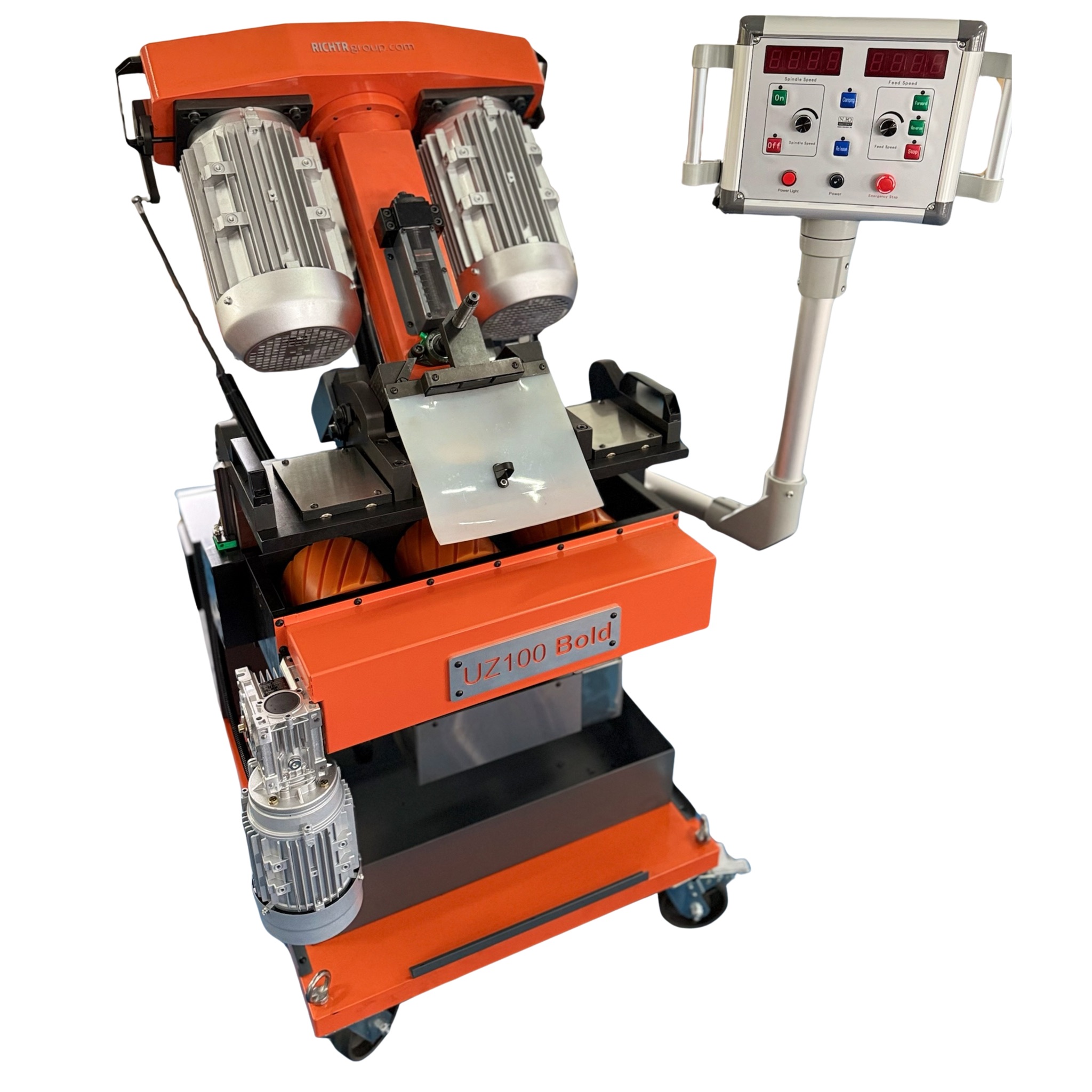

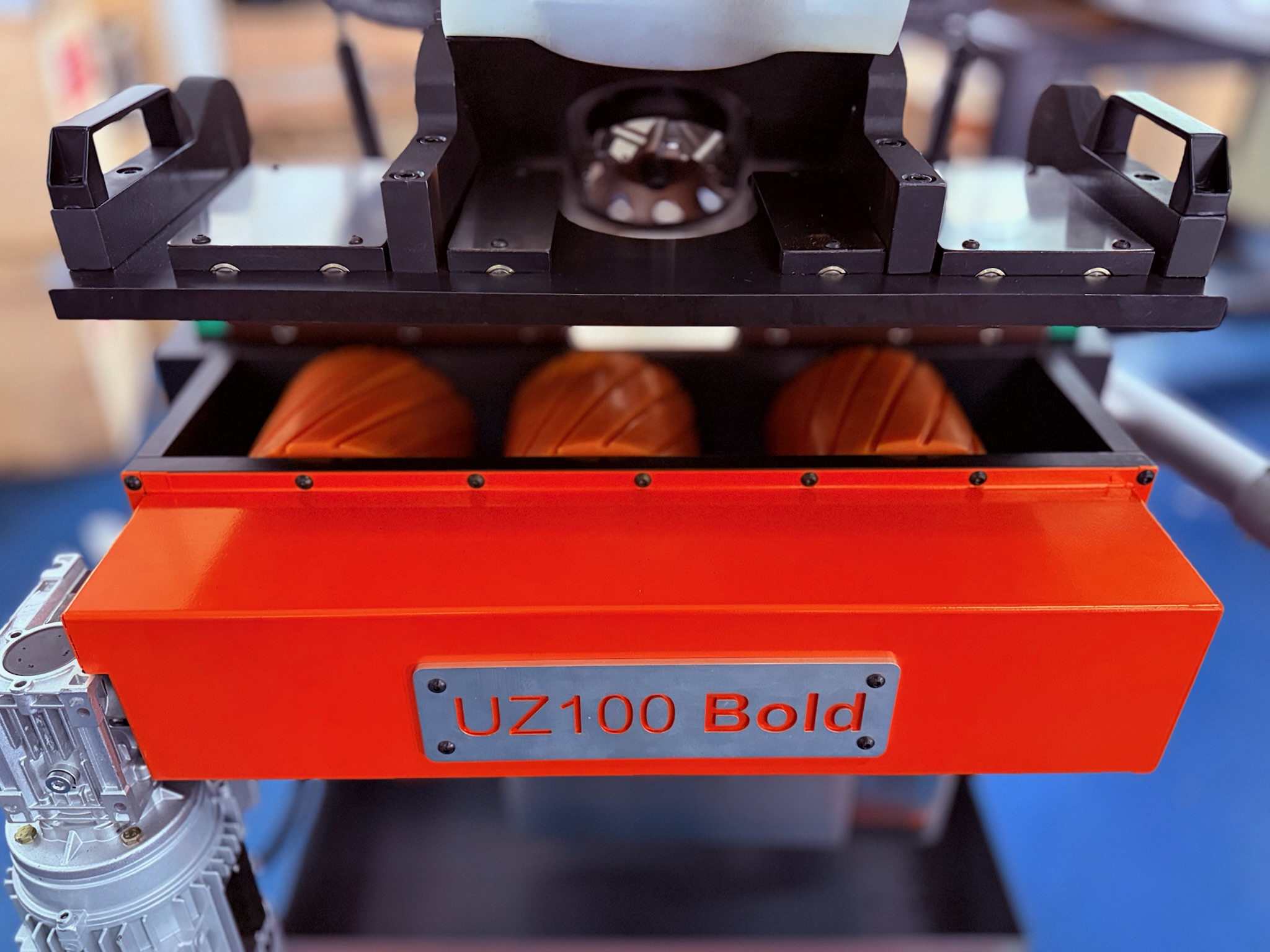

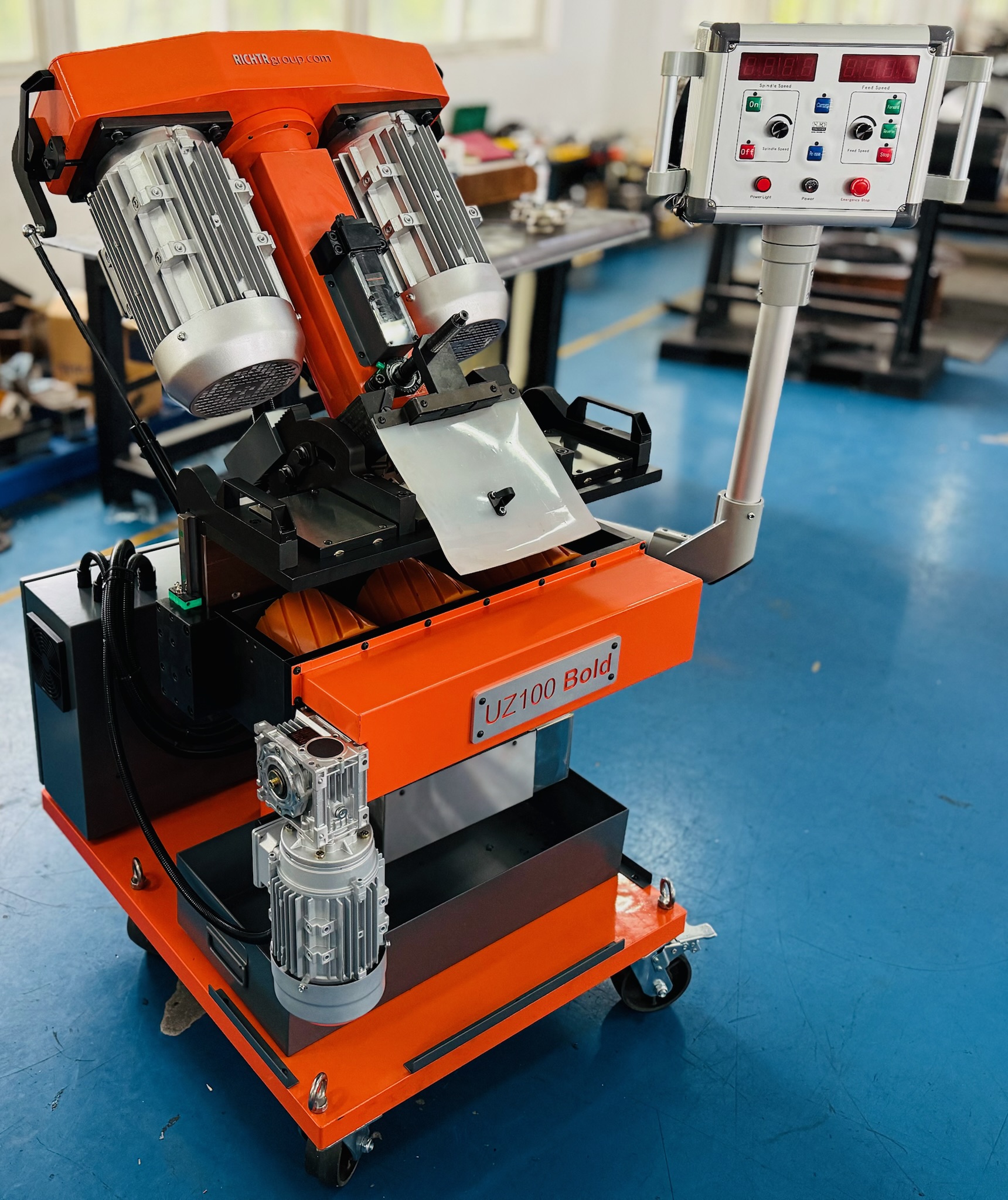

UZ100 BOLD

Name: UZ100 BOLD
Brand: N.KO Machines

BEVELLING SYSTEM

Unique multi-purpose bevelling machine with automatic feed for applications such as V-bevel, J-bevel, Cladding Removal, Facing and +70° chamfers.Suitable for machining structural steels including higher strength steels, stainless steels and other harder to machine materials such as Hardox or Domex.

‍

We offer this machine in the following voltages:

Bevelling system UZ100 BOLD
- Art. Nr. 1000 - 400V, 3 phase
- Art. Nr. 1002 - 480V, 3 phase
- Art. Nr. 1001 - 220V, 3 phase

‍

Share Product

Inquire Now

Line

UZ-Line

Art. Nr.

1000

Product Name

UZ100 BOLD

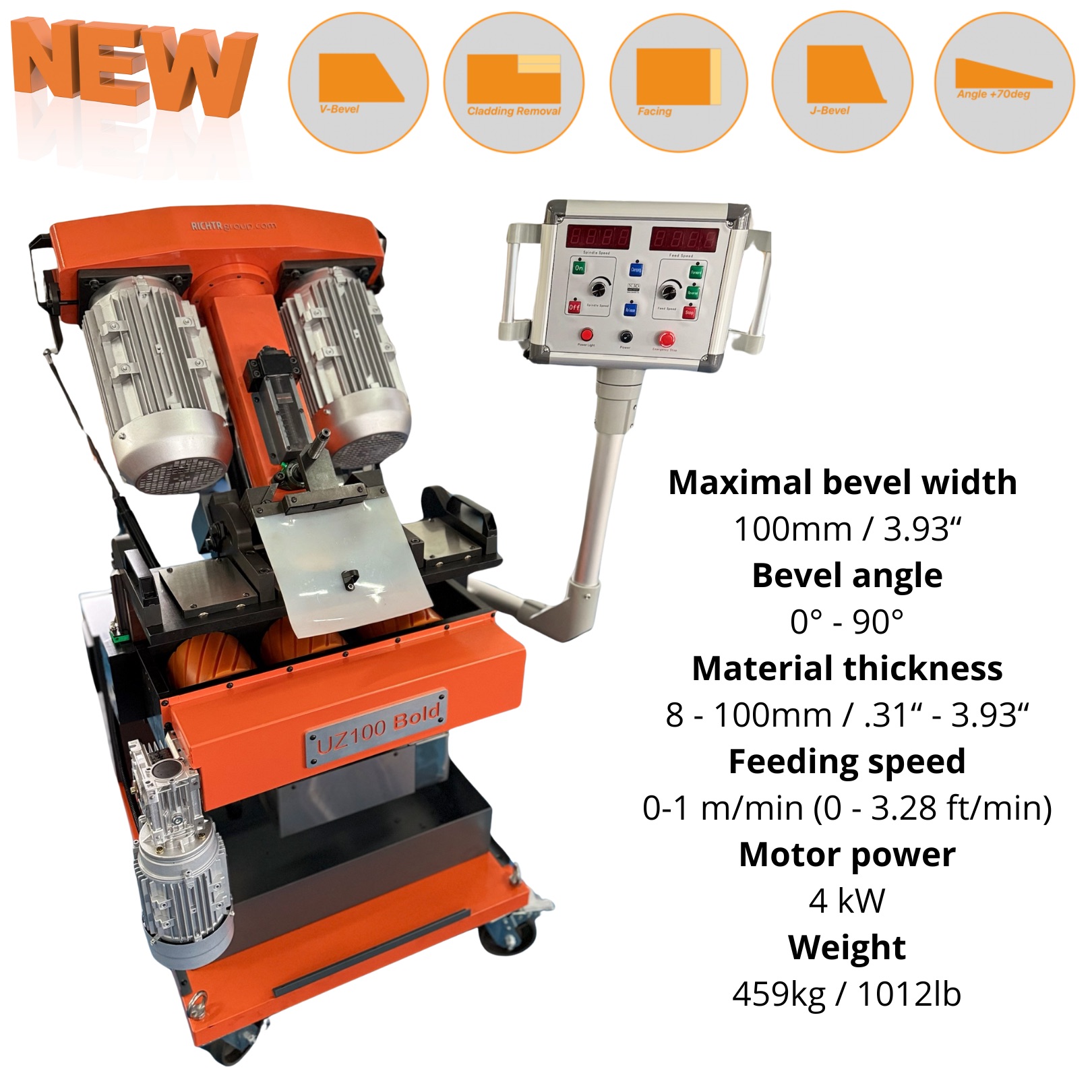

POWER

4000 W

Max. Bevel Width

100mm / 3.93“

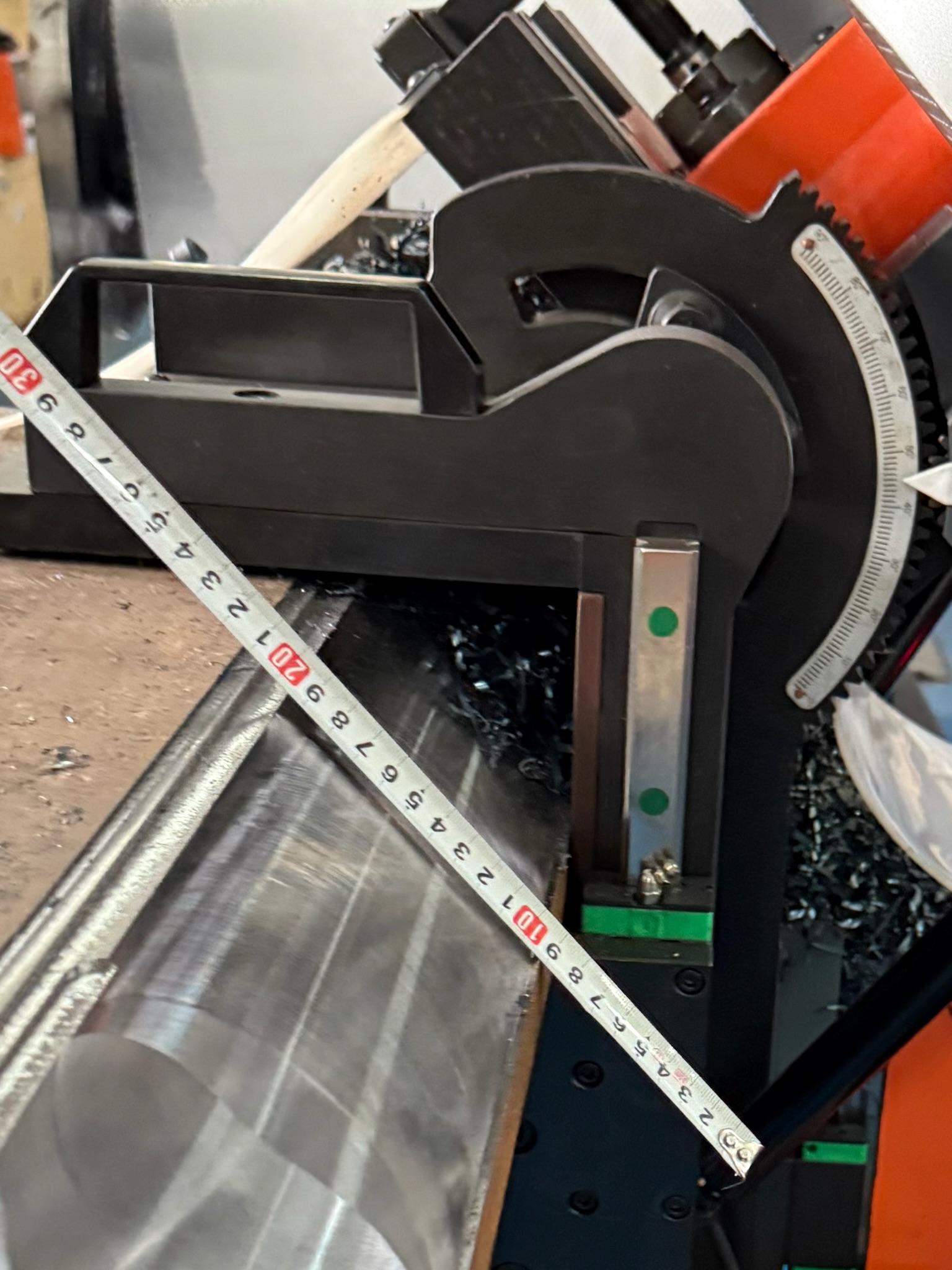

Bevel Angle

0° - 90°

Feeding

Automatic

Feed Rate

0-1 m/min (0 - 3.28 ft/min)

Material Thickness

8 - 100mm / .31“ - 3.93“

Weight

459kg / 1012lb

Dimensions

1080x1020x1360mm

PRODUCT MANUALS

UZ100 Manual EN 17022026

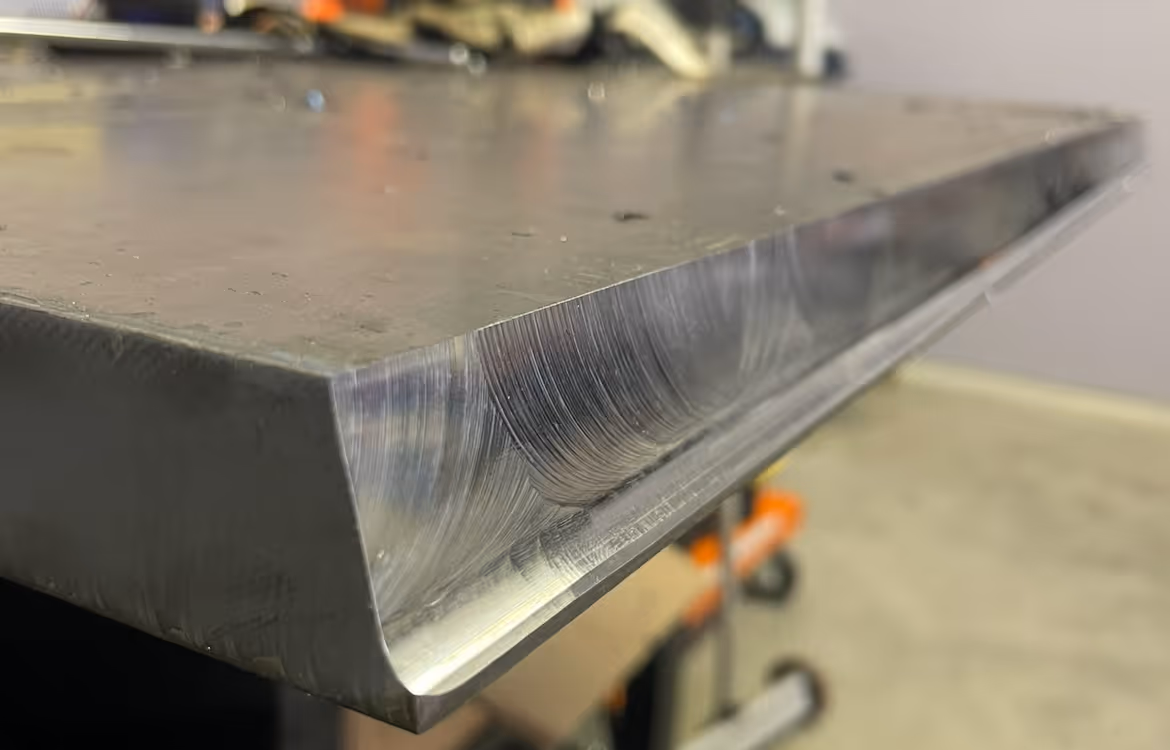

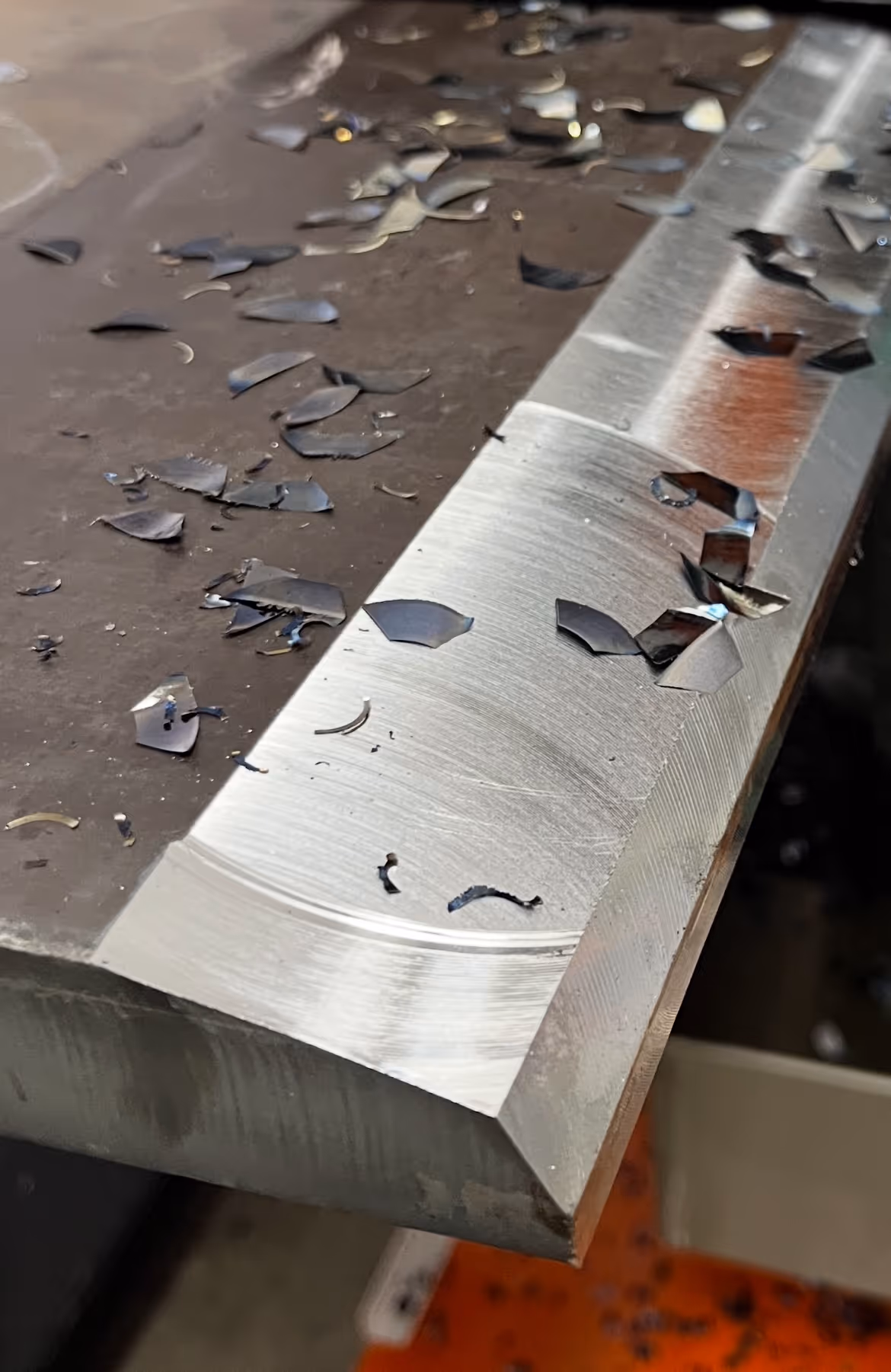

Bevel Types

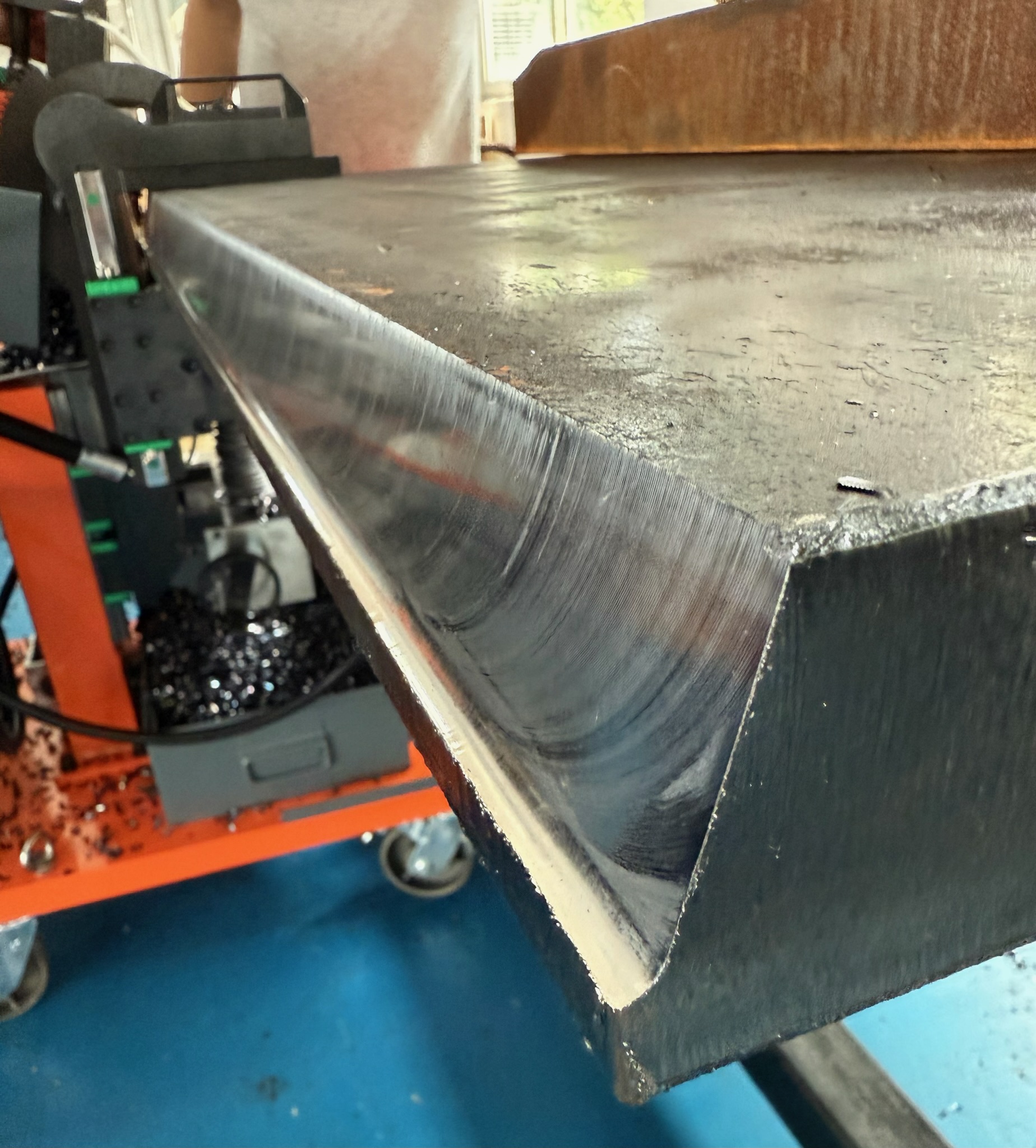

V-Bevel

Facing

J-Bevel

Tapering

Double Bevel

Compound Bevel

Cladding Removal

View Bevel Details
