UZ30 Express

Name: UZ30 Express
Brand: N.KO Machines

BEVELLING SYSTEM

Powerful stationary bevelling and deburring machine for efficient bevelling of flat steel, plates and profile material. Suitable for all carbon steels, cast iron, aluminium and light metal alloys, non-ferrous metals and all cuttable materials.

‍

We offer this machine in the following voltages:

Bevelling system UZ30 Express
- Art. Nr. 25999 - 400V, 3 phase
- Art. Nr. 25997 - 480V, 3 phase
- Art. Nr. 25998 - 220V, 3 phase

‍

Share Product

Inquire Now

Line

UZ-Line

Art. Nr.

25999

Product Name

UZ30 EXPRESS

POWER

450W

Max. Bevel Width

30mm/ 1,18 in

Bevel Angle

Infinitely variable 30°- 60°

Speed

0-5500 rpm

Feeding

Automatic

Feed Rate

0,6-3,5m/min (23"-137"/ min)

Material Thickness

2 - 100 mm (0,078"-3,93")

Weight

400kg (881lb)

Dimensions

825 x 1200 x 1615 mm (32.5"x47.2x63.5")

PRODUCT MANUALS

UZ30 EXPRESS Catalogue Sheet EN

UZ30 EXPRESS User Manual EN

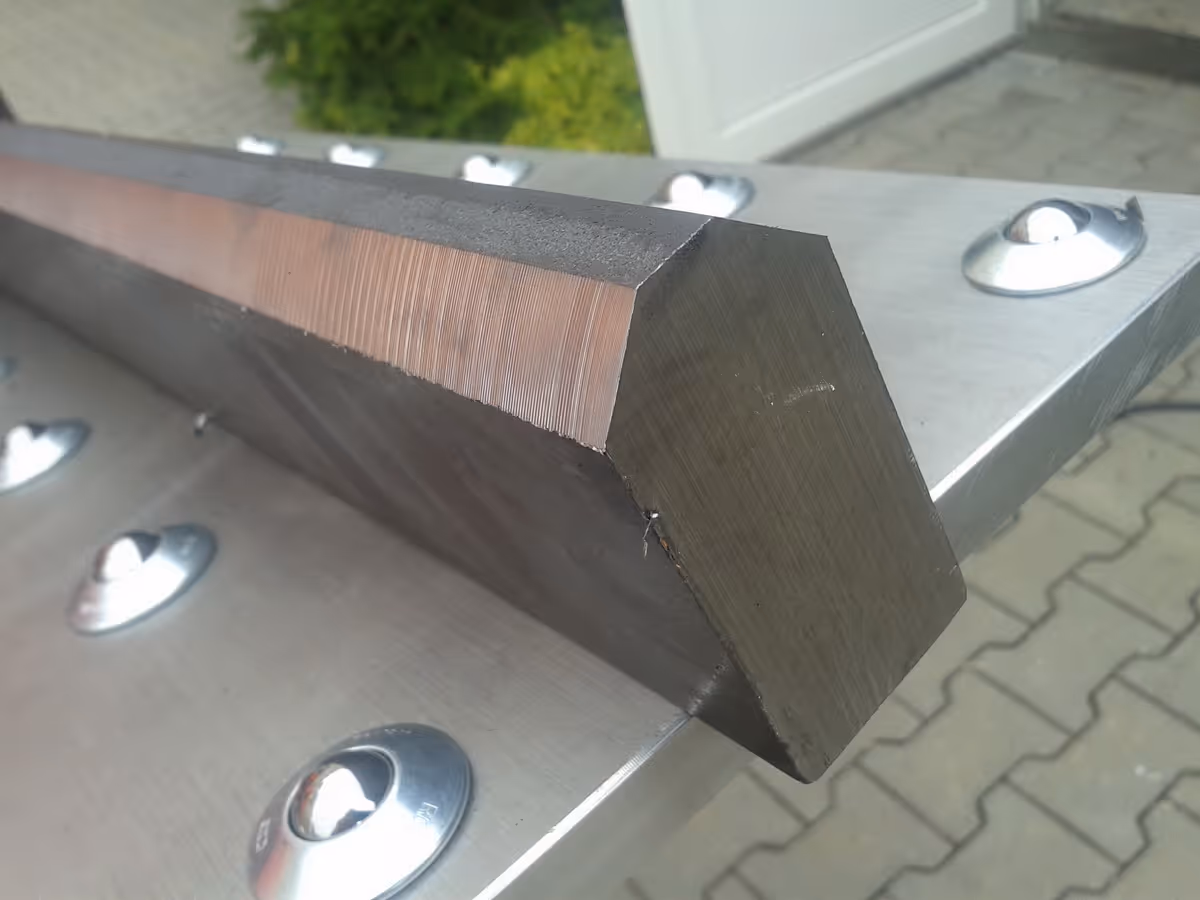

Bevel Types

V-Bevel

Double Bevel

View Bevel Details

V-Bevel

Double Bevel

Key benefits

Powerful, stationary bevelling and deburring machine for the efficient bevelling of flat steel, plates and profile material.
For all carbon steels, cast iron, aluminium and light metal alloys, non-ferrous metals and all cuttable materials.
The feed permits bevel machining without tight clamping of the workpiece.
The swiveling milling spindle permits a milling angle within a continuous range of 30° - 60°.
Regulation of feed speed and cutting tool.
Option to buy additional accessories such as a milling device for pipes, table extension left and right (total 2800 mm) with adjustable sidestops left and right.
Minimum workpiece dimensions: L=60mm, W=20m
Pipe treatment: Ø 102-156mm
Tool diameter: Ø 94mm
Number of indexable inserts: 5 pieces
